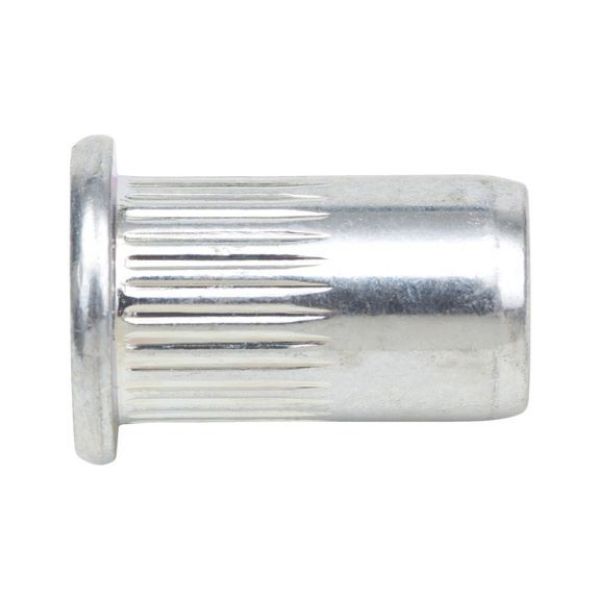

Rivet nut

Article No. 09421006

Stainless steel A2 round pan head knurled shank NUT-RIV-MHD-(0,5-3,0)-A2-16,0-M6

€0.72 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

With knurled shank and round pan head, A2 stainless steel

With knurled shank and round pan head, A2 stainless steel

Products specifications

Thread type x nominal diameter (D)	M6
Head diameter (d₁)	12 mm
Outer diameter (d₂)	8.9 mm
Length (l₁)	16 mm
Head height (k₁)	1.6 mm
Min./max. grip range (s₁)	0.5-3.0 mm
Material	Stainless steel A2
Head type	Truss head
Drill hole diameter	9 mm
Tensile fracture load	20580 N
Shear-fracture load	5630 N
Max. tightening torque	22.2 Nm

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (D)	M6
Head diameter (d₁)	12 mm
Outer diameter (d₂)	8.9 mm
Length (l₁)	16 mm
Head height (k₁)	1.6 mm
Min./max. grip range (s₁)	0.5-3.0 mm
Material	Stainless steel A2
Head type	Truss head
Drill hole diameter	9 mm
Tensile fracture load	20580 N
Shear-fracture load	5630 N
Max. tightening torque	22.2 Nm
