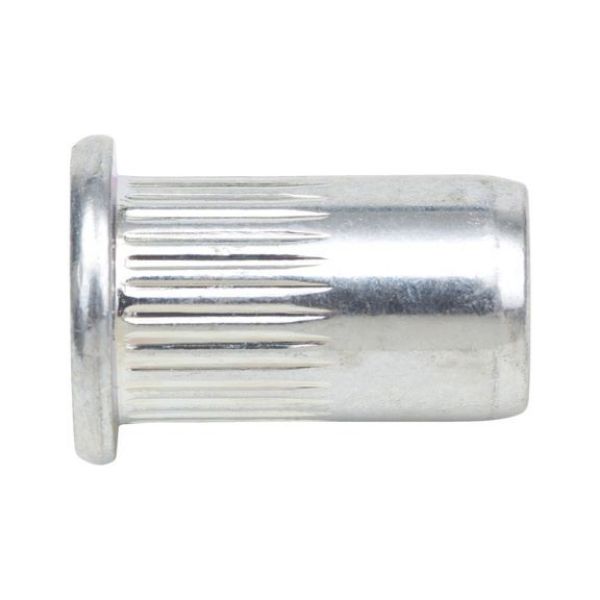

Rivet nut

Article No. 09422008

Stainless steel A2 round pan head knurled shank NUT-RIV-MHD-(3,0-5,5)-A2-20,0-M8

€0.73 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

With knurled shank and round pan head, A2 stainless steel

With knurled shank and round pan head, A2 stainless steel

Products specifications

Thread type x nominal diameter (D)	M8
Head diameter (d₁)	15 mm
Outer diameter (d₂)	10.9 mm
Length (l₁)	20 mm
Head height (k₁)	1.6 mm
Min./max. grip range (s₁)	3.0-5.5 mm
Material	Stainless steel A2
Head type	Truss head
Drill hole diameter	11 mm
Tensile fracture load	26460 N
Shear-fracture load	7800 N
Max. tightening torque	30.5 Nm

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (D)	M8
Head diameter (d₁)	15 mm
Outer diameter (d₂)	10.9 mm
Length (l₁)	20 mm
Head height (k₁)	1.6 mm
Min./max. grip range (s₁)	3.0-5.5 mm
Material	Stainless steel A2
Head type	Truss head
Drill hole diameter	11 mm
Tensile fracture load	26460 N
Shear-fracture load	7800 N
Max. tightening torque	30.5 Nm
