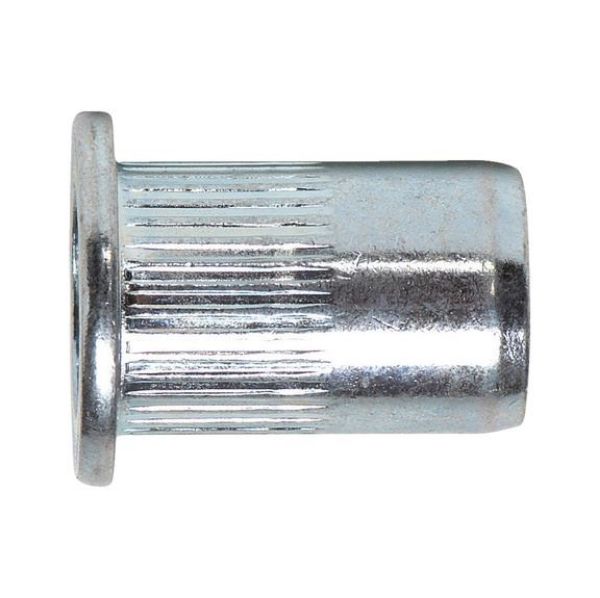

Rivet nuts with round pan head and knurled shank

Article No. 09482004

Aluminium truss head, knurled shaft NUT-RIV-MHD-ALU-(0,5-3,0)-5,9X11,0-M4

€25.83 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Aluminium with knurled shank

Rivet nuts combine two types of fastening: Blind rivet connection and an additional screw connection
This primarily enables screw connections to be used in relatively thin-walled structural elements.

Notice

The specified values relating to the maximum tractive force of the thread and the maximum tightening torque are guideline values. For this reason, the information may vary depending on the workpiece, drilled hole tolerance and roughness of the surface.

Specification
Technical Information
Documents

Aluminium with knurled shank

Rivet nuts combine two types of fastening: Blind rivet connection and an additional screw connection
This primarily enables screw connections to be used in relatively thin-walled structural elements.

Notice

Products specifications

Thread type x nominal diameter (D)	M4
Head diameter (d₁)	9 mm
Outer diameter (d₂)	5.9 mm
Length (l₁)	11 mm
Head height (k₁)	1.1 mm
Min./max. grip range (s₁)	0,5-3,0 mm
Material	Aluminium
Surface	Plain
Head type	Truss head
Drill hole diameter	6 mm
Tensile fracture load	2840 N
Shear-fracture load	1070 N
Max. tightening torque	4 Nm

Würth Catalogue

Catalogue page as PDF |

Flip catalog

Datasheets()

Datasheets ()

CAD Data |

Certificates/Documents

Products specifications

Thread type x nominal diameter (D)	M4
Head diameter (d₁)	9 mm
Outer diameter (d₂)	5.9 mm
Length (l₁)	11 mm
Head height (k₁)	1.1 mm
Min./max. grip range (s₁)	0,5-3,0 mm
Material	Aluminium
Surface	Plain
Head type	Truss head
Drill hole diameter	6 mm
Tensile fracture load	2840 N
Shear-fracture load	1070 N
Max. tightening torque	4 Nm
