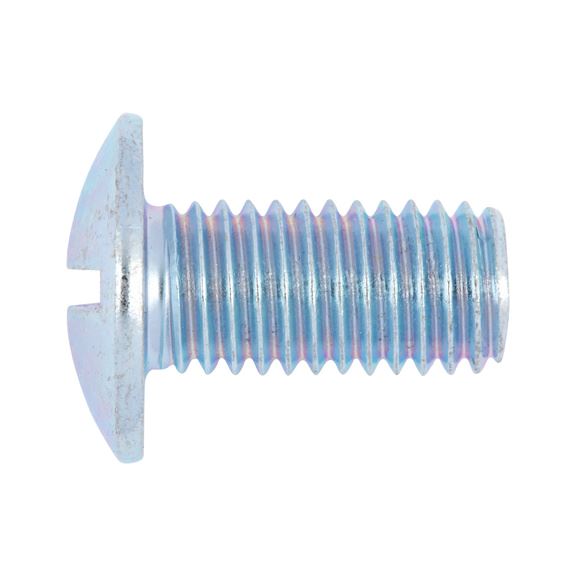

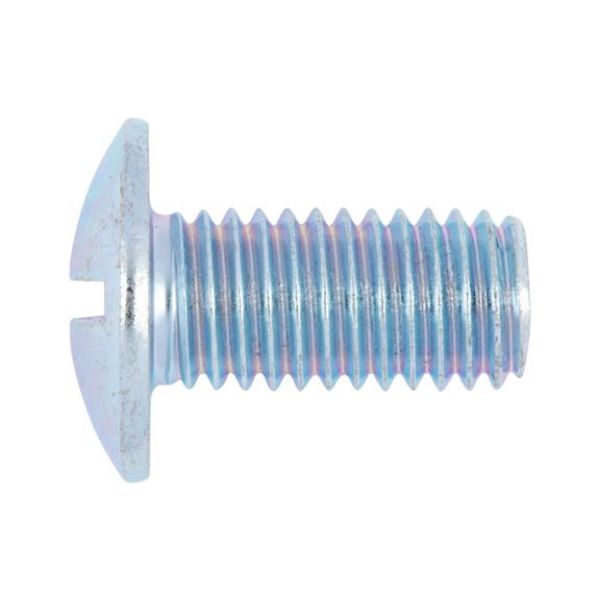

Round head screw

Article No. 0231620

W-0231 steel 4.8 galvanised SCR-MHD-4.8-SL-(A2K)-M6X20

€7.96 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

W-0231, steel 4.8, galvanised, with slot

Flat head means you can make full use of load surfaces – no damage to transported goods from protruding screw heads.

W-0231, steel 4.8, galvanised, with slot

Flat head means you can make full use of load surfaces – no damage to transported goods from protruding screw heads.

Application area

For fastening soft materials (wood, plastic, etc.) to metal frames etc., e.g. truck structures.

Products specifications

Thread type x nominal diameter (d₁)	M6
Length (l₁)	20 mm
Head diameter (d_k)	14 mm
Head height (k₁)	3.3 mm
Standards	CS
Material	Steel
Property class	4.8
Surface	Galvanised
RoHS-compliant	Yes
Head type	Truss head
Drive type	Slot
Internal drive	Slot
Thread type	Metric thread
Pitch	1 mm
Thread format	Standard metric thread

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (d₁)	M6
Length (l₁)	20 mm
Head diameter (d_k)	14 mm
Head height (k₁)	3.3 mm
Standards	CS
Material	Steel
Property class	4.8
Surface	Galvanised
RoHS-compliant	Yes
Head type	Truss head
Drive type	Slot
Internal drive	Slot
Thread type	Metric thread
Pitch	1 mm
Thread format	Standard metric thread
