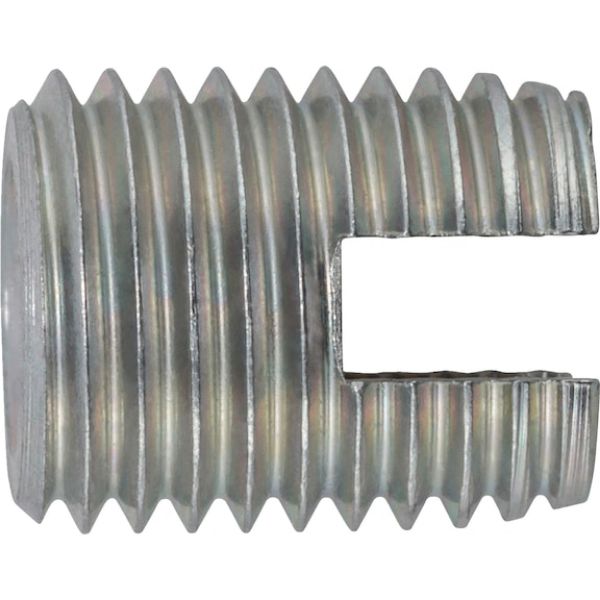

Self-tapping thread insert with cutting slot

Article No. 0660301100
Thread insert with cutting slot steel zinc plated THRINRT-SLFCUT-(DSP)-M10
€1.83 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
Saves time during thread repair and thread reinforcement
  • For producing high-strength screw connections and other threaded connections in materials with low shear strength, e.g. cast iron, aluminium alloys, plastics, hardwood etc.
  • The inserts are simply screwed into a pre-drilled or pre-cast hole
  • Cutting effect due to sharp edges and interrupted threads of the male thread
  • The front threads are bevelled for easier cutting and insertion
  • The cutting slot keeps the thread inserts anchored even during strong vibrations or shaking of the workpiece.
  • Chrome(VI)-free zinc thick film passivation for good corrosion protection (corrosion resistance in salt spray test according to DIN EN ISO 9227-NSS (h): 72h white rust/120 red rust)
Saves time during thread repair and thread reinforcement
  • For producing high-strength screw connections and other threaded connections in materials with low shear strength, e.g. cast iron, aluminium alloys, plastics, hardwood etc.
  • The inserts are simply screwed into a pre-drilled or pre-cast hole
  • Cutting effect due to sharp edges and interrupted threads of the male thread
  • The front threads are bevelled for easier cutting and insertion
  • The cutting slot keeps the thread inserts anchored even during strong vibrations or shaking of the workpiece.
  • Chrome(VI)-free zinc thick film passivation for good corrosion protection (corrosion resistance in salt spray test according to DIN EN ISO 9227-NSS (h): 72h white rust/120 red rust)
Application area
  • Applications in the entire metal and plastic processing industry

  • Thread reinforcement on tools with low shear strength, e.g. cast iron, aluminium alloys, plastics, hardwood etc.

  • For repairing torn-out threads

  • Usual applications:

- For light metals and metals with a strength up to approx. 400 N/mm²


- For cast iron with hardness up to approx. 220 HB


- Plastic and fibreglass-reinforced plastic


(Tests on the original component are recommended, particularly near edges.)

Products specifications
Material Steel, case-hardened
Surface Zinc plated thick-layer passivation
RoHS-compliant Yes
Thread type x nominal diameter (d) M10
Length (L) 18 mm
Outer diameter x pitch (D) 14 x 1.5 mm
Min./max. drill hole diameter 12.7-13.4 mm

Würth Catalogue

Products specifications
Material Steel, case-hardened
Surface Zinc plated thick-layer passivation
RoHS-compliant Yes
Thread type x nominal diameter (d) M10
Length (L) 18 mm
Outer diameter x pitch (D) 14 x 1.5 mm
Min./max. drill hole diameter 12.7-13.4 mm
