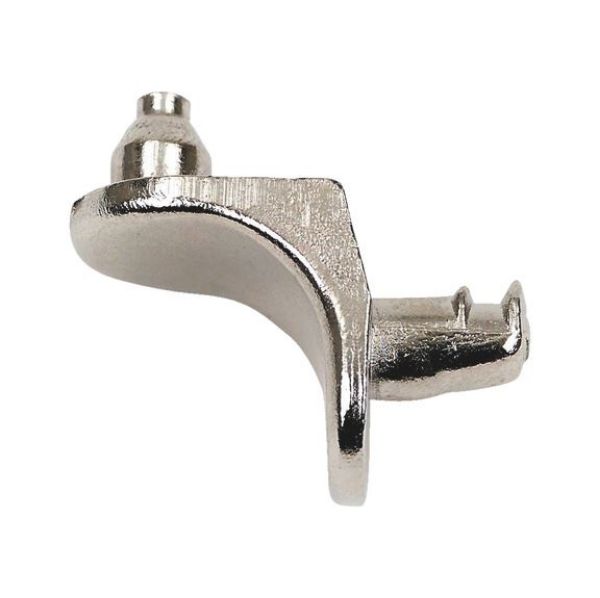

Shelf support with guide pin

Article No. 0683311124
Shelf support edged for mounting with bolt SHLFSPRT-INSERT-(PLT-PLG)-ZD-(NI)-PLUGD5
€0.28 inc. VAT price per 1 PCS
LOW STOCK
*
+ -
With grooved pin for a very secure hold in the side of the cabinet

Material: Die-cast zinc, nickel-plated

  • High break resistance
  • High-quality surface

Grooved Ø 5 mm pin

Very secure hold in the side of the cabinet

Height ratio of central drill hole in cabinet side to bottom edge of the shelf = 6 mm

Compatible with shelf support 0683311125 and 0683311126

Specified dimensions not binding. Subject to technical changes!

With grooved pin for a very secure hold in the side of the cabinet

Material: Die-cast zinc, nickel-plated

  • High break resistance
  • High-quality surface

Grooved Ø 5 mm pin

Very secure hold in the side of the cabinet

Height ratio of central drill hole in cabinet side to bottom edge of the shelf = 6 mm

Compatible with shelf support 0683311125 and 0683311126

Specified dimensions not binding. Subject to technical changes!

Products specifications
Material Zamak
Surface Nickel-plated
Drill diameter 5 mm
Products specifications
Material Zamak
Surface Nickel-plated
Drill diameter 5 mm
