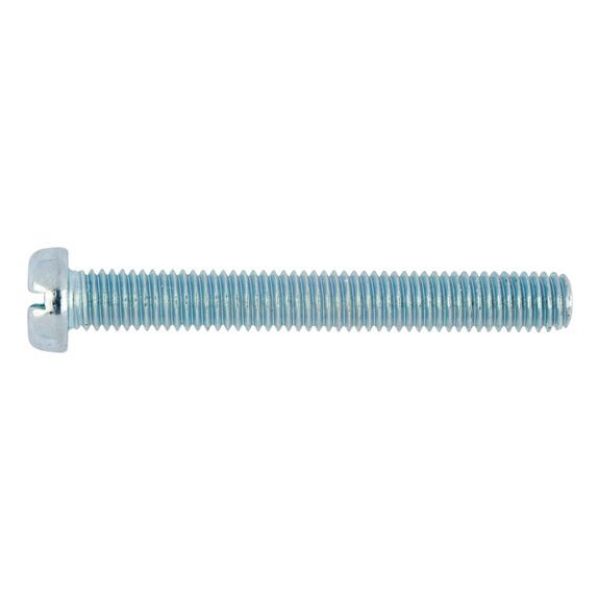

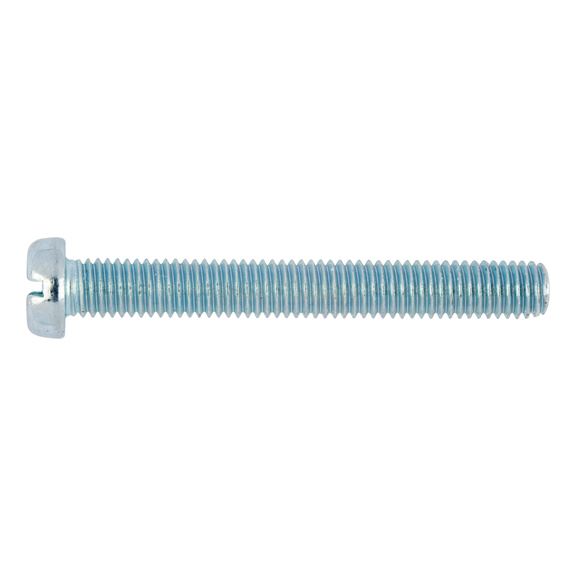

Slotted cheese head

Article No. 0040425

DIN 84 galvanised steel 4.8 SCR-CYL-DIN84-4.8-(A2K)-M4X25

€3.89 inc. VAT price per 100 PCS

LOW STOCK

Qty:

+ -

DIN 84, steel 4.8, galvanised, blue passivated (A2K)

Notice

DIN 84 has been withdrawn and replaced by ISO 1207. There is some limited similarity (nominal Ø

DIN 84, steel 4.8, galvanised, blue passivated (A2K)

Notice

DIN 84 has been withdrawn and replaced by ISO 1207. There is some limited similarity (nominal Ø

Products specifications

Thread type x nominal diameter (d₁)	M4
Length (l₁)	25 mm
Head diameter (d_k )	7 mm
Head height (k₁)	2.6 mm
Standards	DIN 84
Material	Steel
Property class	4.8
Surface	Galvanised
RoHS-compliant	Yes
Head type	Cheese head
Drive type	Slot
Internal drive	Slot
Thread type	Metric thread
Pitch	0.7 mm
Thread format	Standard metric thread
Product class	A
