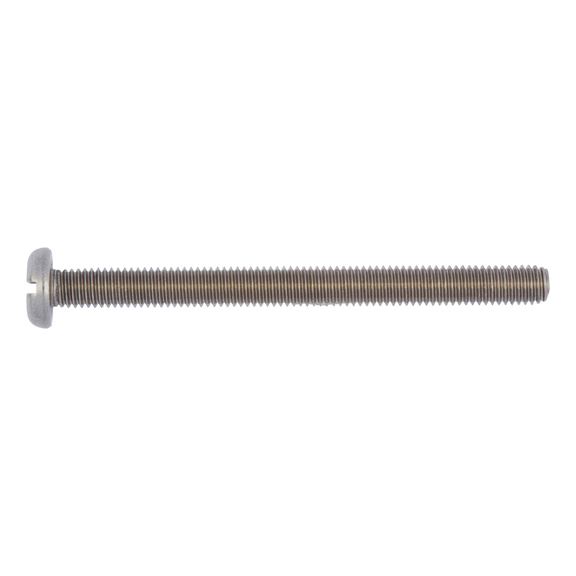

Slotted flat-head screw

Article No. 02712510

DIN 85 plain A2 stainless steel SCR-PANHD-DIN85-A2/70-SL-M2,5X10

€4.96 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 85, stainless steel A2-70, plain

Notice

DIN 85 has been withdrawn and replaced by ISO 1580. There is some similarity (nominal Ø M1.2, M2, M2.5 added | some head heights and head diameters changed | strength class 8.8 omitted).

Specification
Technical Information
Documents

DIN 85, stainless steel A2-70, plain

Notice

DIN 85 has been withdrawn and replaced by ISO 1580. There is some similarity (nominal Ø M1.2, M2, M2.5 added | some head heights and head diameters changed | strength class 8.8 omitted).

Products specifications

Thread type x nominal diameter (d₁)	M2.5
Length (l₁)	10 mm
Head diameter (d_k)	5 mm
Head height (k₁)	1.5 mm
Standards	DIN 85
Material	Stainless steel A2
Property class	70
Surface	Bare
RoHS-compliant	Yes
Head type	Flat head
Drive type	Slot
Internal drive	Slot
Thread type	Metric thread
Pitch	0.45 mm
Thread format	Standard metric thread
Product class	A
