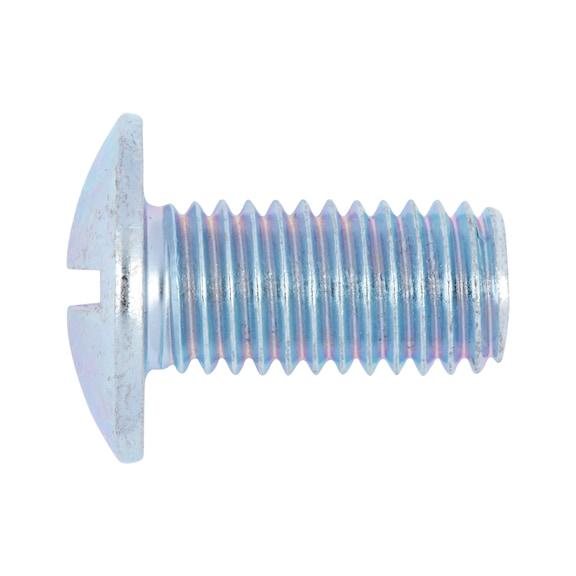

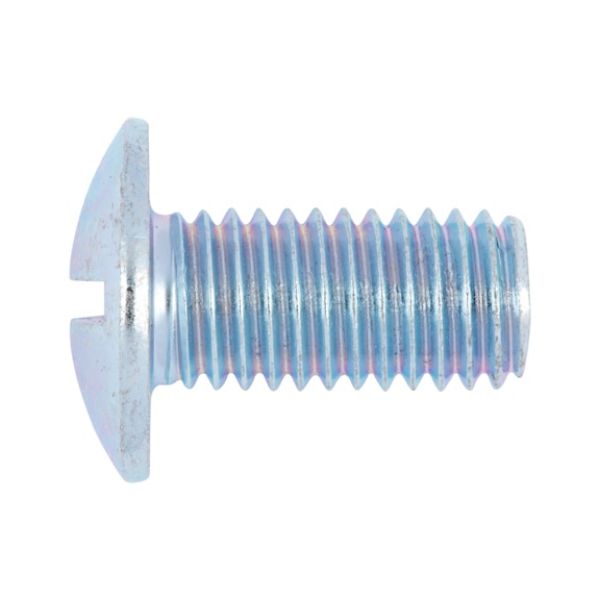

Slotted round head screw W-0231, steel 4.8, zinc-plated, with slot

Article No. 0231820

W-0231 steel 4.8 zinc plated SCR-MHD-4.8-SL-(A2K)-M8X20

€0.14 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

Flat head means you can make full use of load surfaces – no damage to transported goods from protruding screw heads.

Flat head means you can make full use of load surfaces – no damage to transported goods from protruding screw heads.

Application area

For fastening soft materials (wood, plastic, etc.) to metal frames etc., e.g. truck structures.

Products specifications

Thread type x nominal diameter (d₁)	M8
Length (l₁)	20 mm
Head diameter (d_k)	19 mm
Head height (k₁)	4.4 mm
Standards	WN 231
Material	Steel
Property class	4.8
Surface	Zinc plated
RoHS-compliant	Yes
Head type	Truss head
Drive type	Slot
Internal drive	Slot
Thread type	Metric thread
Pitch	1.25 mm
Thread form	Standard metric thread

Würth Catalogue (2)

Products specifications

Thread type x nominal diameter (d₁)	M8
Length (l₁)	20 mm
Head diameter (d_k)	19 mm
Head height (k₁)	4.4 mm
Standards	WN 231
Material	Steel
Property class	4.8
Surface	Zinc plated
RoHS-compliant	Yes
Head type	Truss head
Drive type	Slot
Internal drive	Slot
Thread type	Metric thread
Pitch	1.25 mm
Thread form	Standard metric thread
