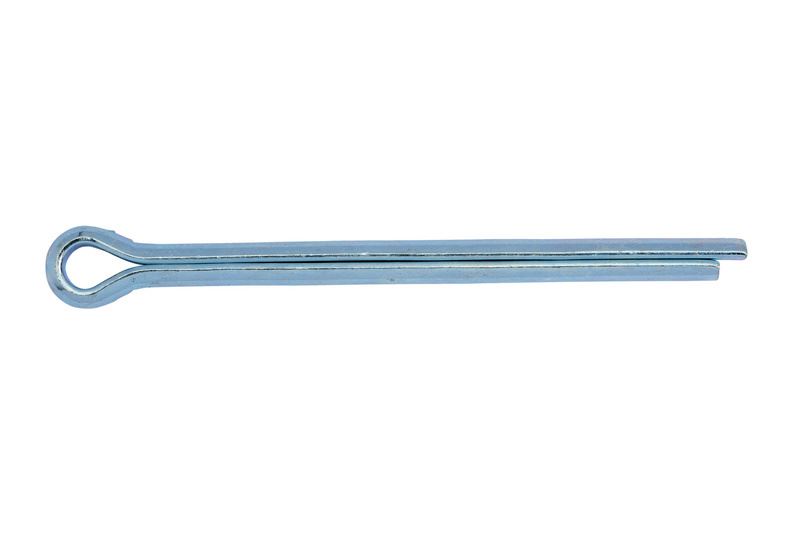

Split pin

Article No. 04703550

DIN 94 steel galvanised SPLTPIN-DIN94-(A2K)-3,5X50

€6.49 inc. VAT price per 100 PCS

Available on Order
Price may vary

Qty:

+ -

DIN 94, galvanised steel, blue passivated (A2K)

To secure castellated nuts in conjunction with bolts or threaded pins with split pin hole (e.g. steering linkage and tracking gears in motor vehicles)
To secure split pin bolts

DIN 94, galvanised steel, blue passivated (A2K)

To secure castellated nuts in conjunction with bolts or threaded pins with split pin hole (e.g. steering linkage and tracking gears in motor vehicles)
To secure split pin bolts

Products specifications

Nominal diameter (d₁)	3.5 mm
Length (l₁)	150 mm
Longitudinal external diameter of ring (b)	7.2 mm
Transverse external diameter of ring (c)	5.9 mm
Length between two pins of a splint (a)	4 mm
Material	Steel
Surface	Galvanised
Tool holding device	94

Wuerth Catalogue(2)

Catalogue page as PDF 1 | 2

Datasheets(1)

CAD Data (available after login)

Products specifications

Nominal diameter (d₁)	3.5 mm
Length (l₁)	150 mm
Longitudinal external diameter of ring (b)	7.2 mm
Transverse external diameter of ring (c)	5.9 mm
Length between two pins of a splint (a)	4 mm
Material	Steel
Surface	Galvanised
Tool holding device	94
