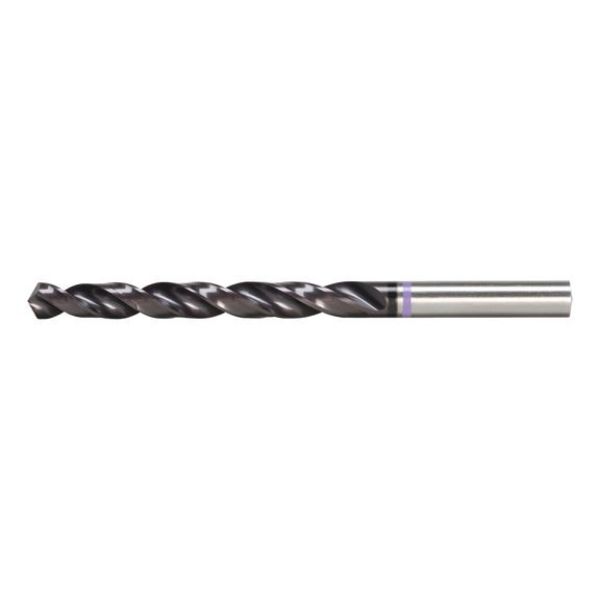

Twist drill bit HSCO DIN 338 type RN MFD VARIO
Twist drill bit HSCO DIN 338 type RN MFD VARIO

Twist drill bit HSCO DIN 338 type RN MFD VARIO

Article No. 0626050600
Twist drill bit HSCo DIN 338 type RN MFD VARIO DRL-TWST-MET-DIN338-HSCO-MFDV-D6,0 ZEBRA
€16.23 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
Premium all-rounder for use in stationary machinery for high-precision machining of virtually all materials, such as stainless steel, heat-resistant steels and titanium, as well as for general applications in conventional steel up to 1200 N/mm² strength, in cast iron and non-ferrous metals (such as magnesium alloys, brass, bronze, plastic).

Less friction and rapid chip removal

Exclusive Vario coil

Optimum centring capability and maximum speed

Special four-faced polished section with optimised point thinning

Superb guiding and accuracy (extremely high torsion rigidity)

Combination of double drill heel and single drill heel

Up to 9 times longer service life compared to uncoated drills and up to 2 times longer service life compared to conventional coatings (resistant up to temperatures of 800°C)

Special Magma multilayer coating

Notice

See overview tables for drill bit/material assignments

Premium all-rounder for use in stationary machinery for high-precision machining of virtually all materials, such as stainless steel, heat-resistant steels and titanium, as well as for general applications in conventional steel up to 1200 N/mm² strength, in cast iron and non-ferrous metals (such as magnesium alloys, brass, bronze, plastic).

Less friction and rapid chip removal

Exclusive Vario coil

Optimum centring capability and maximum speed

Special four-faced polished section with optimised point thinning

Superb guiding and accuracy (extremely high torsion rigidity)

Combination of double drill heel and single drill heel

Up to 9 times longer service life compared to uncoated drills and up to 2 times longer service life compared to conventional coatings (resistant up to temperatures of 800°C)

Special Magma multilayer coating

Notice

See overview tables for drill bit/material assignments

Products specifications
Suitable for machine type Milling/drill center<br>Pedestal drilling machine
Material to be processed Steel<br>Stainless steel<br>Cast iron<br>Titanium<br>Special alloy<br>Non-ferrous metal
Quality ZEBRA-Premium
Standard / drilling depth DIN 338 / 5xD
Diameter (Ø) 6 mm
Shank style Cylindrical
Material sub-group General structural steels<br>Non-alloyed tempering steels<br>Alloyed tempering steels<br>Tool steels<br>High-speed steels<br>Cast iron<br>Ductile iron<br>Malleable cast iron<br>White cast iron<br>Stainless steels, martensitic<br>Stainless steels, sulphurated<br>Stainless steels, austenitic<br>Titanium<br>Titanium alloys<br>Special alloys<br>Magnesium alloys<br>Copper, low-alloyed<br>Brass, long-chipping<br>Brass, short-chipping<br>Bronze, long-chipping<br>Bronze, short-chipping<br>Plastics, duroplastic<br>Plastics, thermoplastic<br>Plastics, glass/carbon-fibre-reinforced<br>Plastics, aramide-fibre reinforced
Surface Magma multilayer coating
Cutting material HSCo
Angle of the tip 118 Degree
Suitable for drill (points system) 2 of 4 points
Length 93 mm
Suitable for cordless drills (points system) 2 of 4 points
Suitable for upright drilling machine (points system) 4 of 4 points
Suitable for milling-drilling centre (points system) 4 of 4 points
Service life (points system) 4 of 4 points
Drilling speed (point system) 4 of 4 points
Bore hole quality (point system) ( ) 4 of 4 points
Versatility (points system) 4 of 4 points
Drilling behaviour (point system) 4 of 4 points
Chip flute length 57 mm
Self-centring Yes
Max. drilling depth (D) 5xD
Drilling depth 30 mm

Würth Catalogue(2)

Catalogue page as PDF 1 |  2 |  3 |  4 |  5 |  6

Flip catalog

Products specifications
Suitable for machine type Milling/drill center<br>Pedestal drilling machine
Material to be processed Steel<br>Stainless steel<br>Cast iron<br>Titanium<br>Special alloy<br>Non-ferrous metal
Quality ZEBRA-Premium
Standard / drilling depth DIN 338 / 5xD
Diameter (Ø) 6 mm
Shank style Cylindrical
Material sub-group General structural steels<br>Non-alloyed tempering steels<br>Alloyed tempering steels<br>Tool steels<br>High-speed steels<br>Cast iron<br>Ductile iron<br>Malleable cast iron<br>White cast iron<br>Stainless steels, martensitic<br>Stainless steels, sulphurated<br>Stainless steels, austenitic<br>Titanium<br>Titanium alloys<br>Special alloys<br>Magnesium alloys<br>Copper, low-alloyed<br>Brass, long-chipping<br>Brass, short-chipping<br>Bronze, long-chipping<br>Bronze, short-chipping<br>Plastics, duroplastic<br>Plastics, thermoplastic<br>Plastics, glass/carbon-fibre-reinforced<br>Plastics, aramide-fibre reinforced
Surface Magma multilayer coating
Cutting material HSCo
Angle of the tip 118 Degree
Suitable for drill (points system) 2 of 4 points
Length 93 mm
Suitable for cordless drills (points system) 2 of 4 points
Suitable for upright drilling machine (points system) 4 of 4 points
Suitable for milling-drilling centre (points system) 4 of 4 points
Service life (points system) 4 of 4 points
Drilling speed (point system) 4 of 4 points
Bore hole quality (point system) ( ) 4 of 4 points
Versatility (points system) 4 of 4 points
Drilling behaviour (point system) 4 of 4 points
Chip flute length 57 mm
Self-centring Yes
Max. drilling depth (D) 5xD
Drilling depth 30 mm
