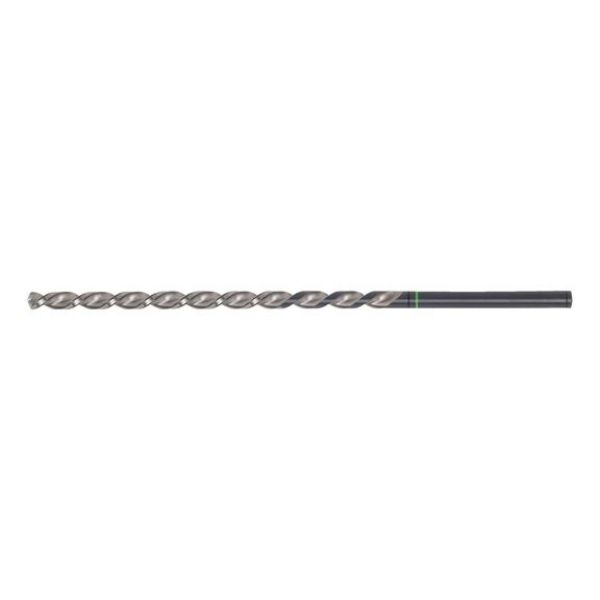

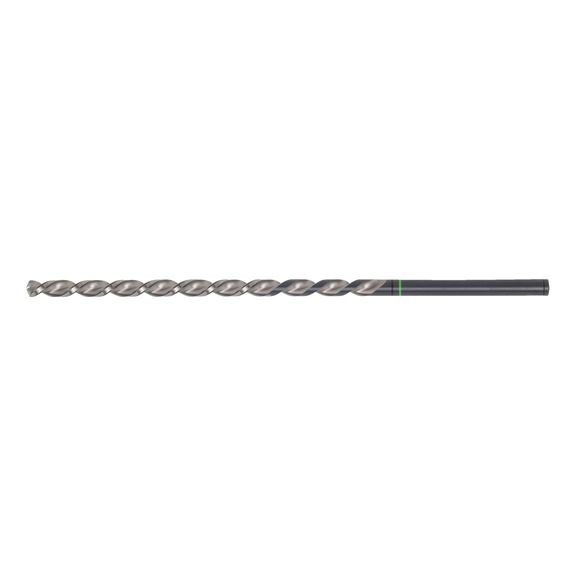

Twist drill HSCO DIN 1869 R1 type RN

Article No. 0626461200
Twist drill bit HSCo DIN 1869 R1 type RN DRL-TWST-MET-DIN1869-R1-HSCO-NIT-D12,0 ZEBRA
€97.26 inc. VAT price per 1 PCS
LOW STOCK
*
+ -
The extra-long, twisted stainless steel deep hole drill for processing stainless steel (e.g. V2A, V4A), heat-resistant steels and for a wide range of general applications in steel with strength of up to 1,000 N/mm² and cast iron.

Outstanding chip removal

Special chip flute profile (reduced processing time due to fewer chip removal cycles)

Straight and precise drilling

Double drill heels

Approx. 30% longer service life than untreated surfaces

Chamfer-nitriding

Notice
  • When using a drill bit in line with DIN 1869, the creation of a pilot hole of 1xD to 2xD depth is recommended. Our extra-short long-life drill bit in line with DIN 1897 (art. no. 062674…) is ideal for this task.
  • See overview table for drill bit/material assignments
The extra-long, twisted stainless steel deep hole drill for processing stainless steel (e.g. V2A, V4A), heat-resistant steels and for a wide range of general applications in steel with strength of up to 1,000 N/mm² and cast iron.

Outstanding chip removal

Special chip flute profile (reduced processing time due to fewer chip removal cycles)

Straight and precise drilling

Double drill heels

Approx. 30% longer service life than untreated surfaces

Chamfer-nitriding

Notice
  • When using a drill bit in line with DIN 1869, the creation of a pilot hole of 1xD to 2xD depth is recommended. Our extra-short long-life drill bit in line with DIN 1897 (art. no. 062674…) is ideal for this task.
  • See overview table for drill bit/material assignments
Products specifications
Suitable for machine type Drill<br>Cordless screwdrivers<br>Milling/drill center<br>Pedestal drilling machine
Material to be processed Steel<br>Cast iron<br>Stainless steel<br>Titanium
Quality ZEBRA-Premium
Standard / drilling depth DIN 1869 / 20xD
Diameter (Ø) 12 mm
Shank style Cylindrical
Material sub-group General structural steels<br>Non-alloyed tempering steels<br>Nitriding steels<br>Tool steels<br>High-speed steels<br>Cast iron<br>Ductile iron<br>Malleable cast iron<br>White cast iron<br>Stainless steels, sulphurated<br>Stainless steels, austenitic<br>Stainless steels, martensitic<br>Titanium<br>Titanium alloys<br>Spring steels<br>Magnesium alloys<br>Copper, low-alloyed<br>Bronze, short-chipping<br>Bronze, long-chipping<br>Brass, short-chipping<br>Brass, long-chipping<br>Plastics, duroplastic<br>Plastics, thermoplastic
Surface Fase nitrated
Cutting material HSCo
Angle of the tip 130 Degree
Suitable for drill (points system) 2 of 4 points
Length 295 mm
Suitable for cordless drills (points system) 2 of 4 points
Suitable for upright drilling machine (points system) 3 of 4 points
Suitable for milling-drilling centre (points system) 3 of 4 points
Service life (points system) 3 of 4 points
Drilling speed (point system) 3 of 4 points
Bore hole quality (point system) ( ) 4 of 4 points
Versatility (points system) 3 of 4 points
Drilling behaviour (point system) 3 of 4 points
Chip flute length 205 mm
Self-centring Yes
Max. drilling depth (D) 20xD
Drilling depth 240 mm

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Products specifications
Suitable for machine type Drill<br>Cordless screwdrivers<br>Milling/drill center<br>Pedestal drilling machine
Material to be processed Steel<br>Cast iron<br>Stainless steel<br>Titanium
Quality ZEBRA-Premium
Standard / drilling depth DIN 1869 / 20xD
Diameter (Ø) 12 mm
Shank style Cylindrical
Material sub-group General structural steels<br>Non-alloyed tempering steels<br>Nitriding steels<br>Tool steels<br>High-speed steels<br>Cast iron<br>Ductile iron<br>Malleable cast iron<br>White cast iron<br>Stainless steels, sulphurated<br>Stainless steels, austenitic<br>Stainless steels, martensitic<br>Titanium<br>Titanium alloys<br>Spring steels<br>Magnesium alloys<br>Copper, low-alloyed<br>Bronze, short-chipping<br>Bronze, long-chipping<br>Brass, short-chipping<br>Brass, long-chipping<br>Plastics, duroplastic<br>Plastics, thermoplastic
Surface Fase nitrated
Cutting material HSCo
Angle of the tip 130 Degree
Suitable for drill (points system) 2 of 4 points
Length 295 mm
Suitable for cordless drills (points system) 2 of 4 points
Suitable for upright drilling machine (points system) 3 of 4 points
Suitable for milling-drilling centre (points system) 3 of 4 points
Service life (points system) 3 of 4 points
Drilling speed (point system) 3 of 4 points
Bore hole quality (point system) ( ) 4 of 4 points
Versatility (points system) 3 of 4 points
Drilling behaviour (point system) 3 of 4 points
Chip flute length 205 mm
Self-centring Yes
Max. drilling depth (D) 20xD
Drilling depth 240 mm
