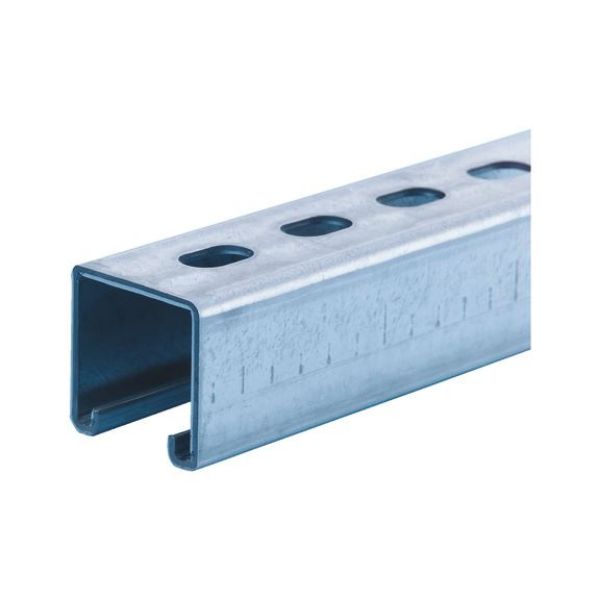

VARIFIX® C-mounting rail 41/41

Article No. 0862001226

VARIFIX C-assy rail 41/41 sendzimir zinc-pl stl MNTRL-C-41/41-TH2,5-3M VARIFIX

€12.39 inc. VAT price per 1 METER

AVAILABLE

Packaging Unit *

Qty:

+ -

Various mounting options with extensive system components

Visually clean solution with no sharp edges

thanks to the use of cover caps

Easier alignment of the rails

Using lateral graduation lines

Noise insulation elements for every rail size

Heavy load

thanks to favourable profile cross-sections

Cradle to Cradle^® certified

Upgrading the building using non-hazardous materials
Wider range of applications for GreenBuilding and building certification in accordance with LEED^®, BREEAM^® and DGNB

Notice

Not suitable for outdoor use! For outdoor mounting, please select the stainless-steel range. Calculation incl. structural analysis and anchor layout using Varifix^® software

Specification
Technical Information
Documents

Various mounting options with extensive system components

Visually clean solution with no sharp edges

thanks to the use of cover caps

Easier alignment of the rails

Using lateral graduation lines

Noise insulation elements for every rail size

Heavy load

thanks to favourable profile cross-sections

Cradle to Cradle^® certified

Upgrading the building using non-hazardous materials
Wider range of applications for GreenBuilding and building certification in accordance with LEED^®, BREEAM^® and DGNB

Notice

Not suitable for outdoor use! For outdoor mounting, please select the stainless-steel range. Calculation incl. structural analysis and anchor layout using Varifix^® software

Products specifications

Width (B)	41 mm
Height (H)	41 mm
Material thickness (t)	2.5 mm
Width of mouth (B_Ö)	22 mm
Elongated hole length (LL₁)	20 mm
Elongated hole width (LB₁)	12.5 mm
Rebate height (H_F)	7.5 mm
Hole distance (LA₁)	35 mm
Rail length (L)	3 m
Surface	Sendzimir galvanised
Weight per metre	2450 g
Fire protection certified	Yes
Material	Steel
