VARIFIX{471}® {472}bracket{473} {474}26/18 - C2C

Article No. 0862009002

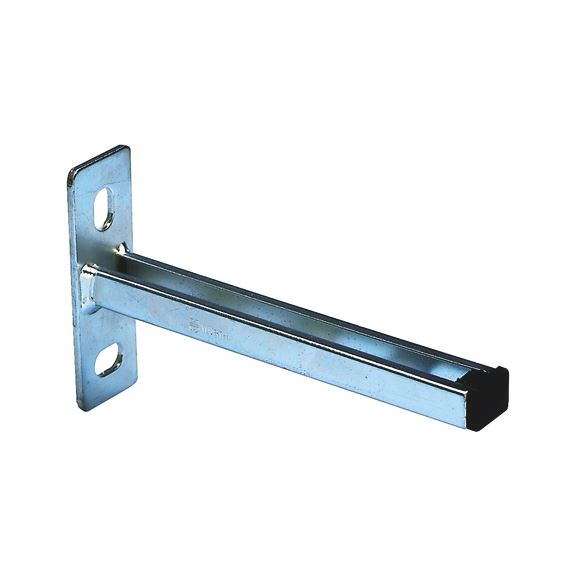

VARIFIX console 26/18 steel galvanised CNSL-26/18-TH1,25-300MM VARIFIX
€6.67 inc. VAT price per 1 PCS
LOW STOCK
*
+ -
Universal wall bracket for mounting piping etc.
  • Rail end plug included in scope of delivery
  • Units with clamping amplitude ≤ 26 N/mm{463}2{464}

Cradle to Cradle{465}®{466} certified

  • Upgrading the building using non-hazardous materials
  • Wider range of applications for GreenBuilding and building certification in accordance with LEED{467}®{468}, BREEAM{469}®{470} and DGNB
Notice

Not suitable for outdoor use. For outdoor mounting, please select the stainless-steel range.

Universal wall bracket for mounting piping etc.
  • Rail end plug included in scope of delivery
  • Units with clamping amplitude ≤ 26 N/mm{463}2{464}

Cradle to Cradle{465}®{466} certified

  • Upgrading the building using non-hazardous materials
  • Wider range of applications for GreenBuilding and building certification in accordance with LEED{467}®{468}, BREEAM{469}®{470} and DGNB
Notice

Not suitable for outdoor use. For outdoor mounting, please select the stainless-steel range.

Products specifications
Effective length of bracket (X) 304 mm
Base plate height (H) 120 mm
Base plate width (B) 40 mm
Base plate thickness (t) 4 mm
Profile height (Hp) 18 mm
Profile width (BP) 26 mm
Profile thickness (tp) 1.25 mm
Elongated hole length (LL1) 20 mm
Elongated hole width (LB1) 9 mm
Hole distance (LA1) 75 mm
Elongated hole length 2 (LL2) 29.5 mm
Elongated hole width 2 (LB2) 11.5 mm
Hole distance 2 (LA2) 50 mm
Permissible load for loading scenario 1 0.69 kN/m
Permissible load for loading scenario 2 0.21 kN
Permissible load for loading scenario 3 0.1 kN
Permissible load for loading scenario 4 0.1 kN
Permissible load for loading scenario 5 0.07 kN
Fire protection certified No
Surface Galvanised
Material Structural steel, 1.0037 previously S235 JR
Product weight (per item) 306 g
Length 300 mm
