VARIFIX{521}® {522}bracket 41/41 - C2C

Article No. 0862009062

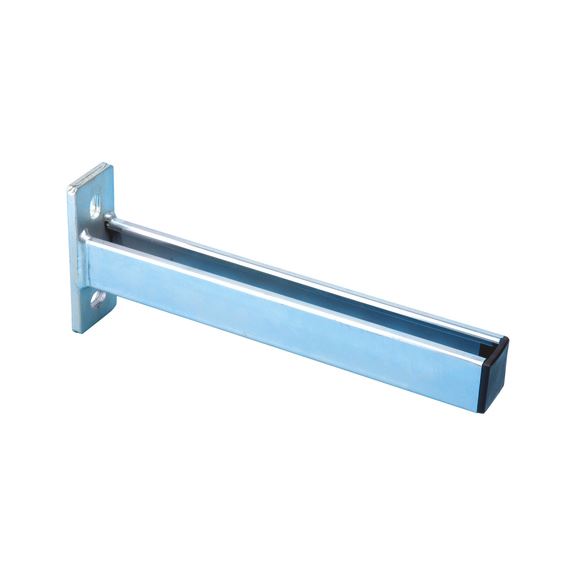

VARIFIX console 41/41 steel galvanised CNSL-41/41-TH2,5-600MM

€23.25 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

Rail end plug included in scope of delivery

Cradle to Cradle{515}®{516} certified

Upgrading the building using non-hazardous materials
Wider range of applications for GreenBuilding and building certification in accordance with LEED{517}®{518}, BREEAM{519}®{520} and DGNB

Notice

Not suitable for outdoor use. For outdoor mounting, please select the stainless-steel range.

Rail end plug included in scope of delivery

Cradle to Cradle{515}®{516} certified

Upgrading the building using non-hazardous materials
Wider range of applications for GreenBuilding and building certification in accordance with LEED{517}®{518}, BREEAM{519}®{520} and DGNB

Notice

Not suitable for outdoor use. For outdoor mounting, please select the stainless-steel range.

Application area

Universal wall bracket for mounting piping, assemblies etc.

Products specifications

Effective length of bracket (X)	630 mm
Base plate height (H)	126 mm
Base plate width (B)	50 mm
Base plate thickness (t)	8 mm
Profile height (H_p)	41 mm
Profile width (B_P)	41 mm
Profile thickness (t_p)	2.5 mm
Elongated hole length (LL₁)	20 mm
Elongated hole width (LB₁)	13 mm
Hole distance (LA₁)	75 mm
Elongated hole length 2 (LL₂)	20 mm
Elongated hole width 2 (LB₂)	12.5 mm
Hole distance 2 (LA₂)	35 mm
Permissible load for loading scenario 1	2.19 kN/m
Permissible load for loading scenario 2	1.38 kN
Permissible load for loading scenario 3	0.69 kN
Permissible load for loading scenario 4	0.69 kN
Permissible load for loading scenario 5	0.46 kN
Fire protection certified	Yes
Surface	Galvanised
Material	Structural steel, 1.0037 previously S235 JR
Product weight (per item)	1806.100 g
