Vulcanised fibre discs, Topsize zirconia alumina

Article No. 0580512512

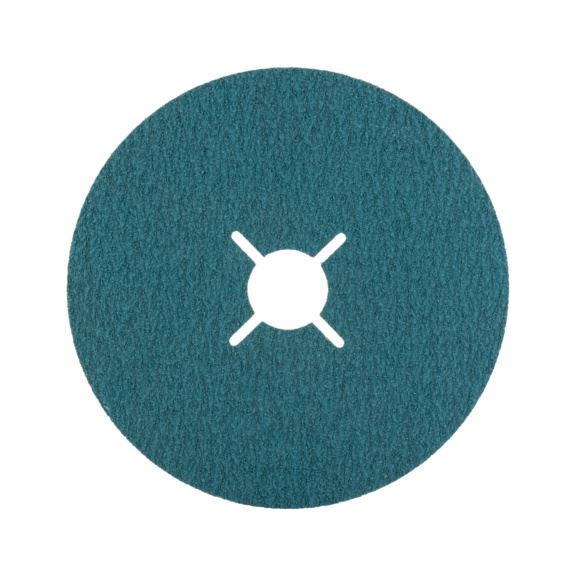

Vulcanised fibre disc, zirconium corundum Topsize FBRDISC-ZC-G120-D125X22MM

€0.89 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Tear-resistant, tough-elastic sanding disc

22 mm hole with cross slot

Carrier material made from vulcanised fibre

Grain size 16-50: 0.8 mm
Grain 60-120: 0.6 mm

Electrostatic dispersion

Consistent removal rates

Topsize coating (= specialised zirconia alumina with cooling multi-bonding and grinding fillers) and highly elastic fully synthetic resin bonding

Aggressive grinding performance
Cool grinding – no tarnishing of the workpiece
Long service life
Low noise levels
Effective self-sharpening effect of the grinding grain

Notice

General working and safety instructions

Only use fibre discs with approved, undamaged support plates
The diameter of the fibre disc must not be more than 15 mm greater than the diameter of the support plate
Plunge-cut grinding is not permitted
Always wear appropriate protective equipment, e.g. safety glasses, gloves, hearing protection, etc.
Store out of direct sunlight and away from heat sources. Do not store in damp environments or on the floor
Store in original packaging at 18-22°C and 45-60% relative air humidity

Specification
Application
Technical Information
Documents

Tear-resistant, tough-elastic sanding disc

22 mm hole with cross slot

Carrier material made from vulcanised fibre

Grain size 16-50: 0.8 mm
Grain 60-120: 0.6 mm

Electrostatic dispersion

Consistent removal rates

Topsize coating (= specialised zirconia alumina with cooling multi-bonding and grinding fillers) and highly elastic fully synthetic resin bonding

Aggressive grinding performance
Cool grinding – no tarnishing of the workpiece
Long service life
Low noise levels
Effective self-sharpening effect of the grinding grain

Notice

General working and safety instructions

Only use fibre discs with approved, undamaged support plates
The diameter of the fibre disc must not be more than 15 mm greater than the diameter of the support plate
Plunge-cut grinding is not permitted
Always wear appropriate protective equipment, e.g. safety glasses, gloves, hearing protection, etc.
Store out of direct sunlight and away from heat sources. Do not store in damp environments or on the floor
Store in original packaging at 18-22°C and 45-60% relative air humidity

Application area

For use on hand-held pneumatic or electric angle grinders with circumferential speed of up to 80 m/s in conjunction with a support plate

Edge and surface grinding on flat and curved components:

Grain size 16-40: Levelling welding seams, spot-welding points, brazing seams etc. Deburring work on sheet, cast and forged metal parts. Grinding off sprues

Grain size 40-80: Smoothing of butt welds, edge breakage work and bare grinding of metal sheets and other metal surfaces.

Grain size 40-120: Derusting, grinding off old paint layers, fine sanding in car repairs

Materials to be processed:

Corrosion resistant and highly heat-resistant steels (stainless steel), carbon steels, forged steel, non-ferrous metals, chrome and nickel alloys and grey cast iron

Products specifications

Diameter (Ø)	125 mm
Bore diameter	22.23 mm
Grid size	120
Backing material	Vulcanised fibre
Material of abrasive medium	Zirconium conrundum
Colour of disc	Turquoise blue
Adhesive base	All-synthetic resin with grinding-active additives

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Products specifications

Diameter (Ø)	125 mm
Bore diameter	22.23 mm
Grid size	120
Backing material	Vulcanised fibre
Material of abrasive medium	Zirconium conrundum
Colour of disc	Turquoise blue
Adhesive base	All-synthetic resin with grinding-active additives
