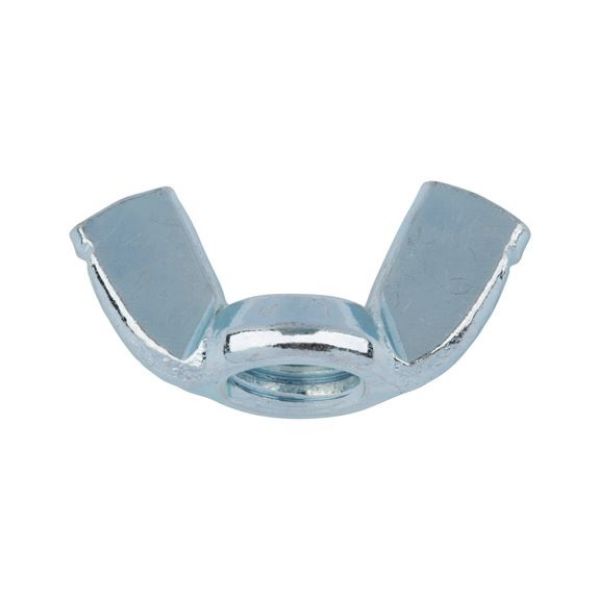

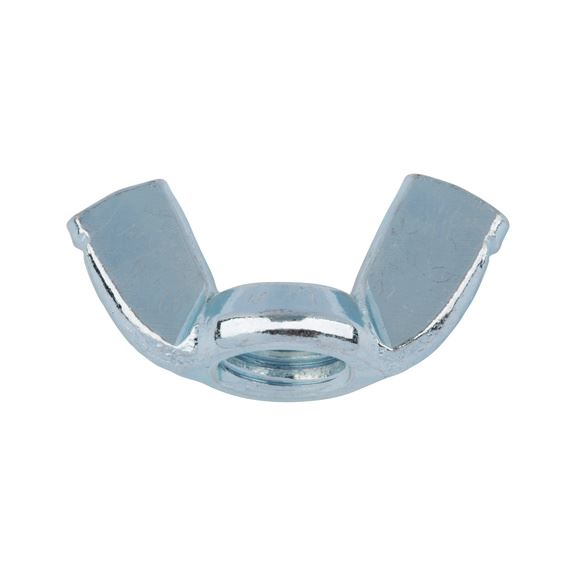

Wing nut, edged wing shape (American type)

Article No. 03423

DIN 314 similar steel galvanised NUT-WING-SIDIN314-US-(A2K)-M3

€8.26 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

Galvanized steel, blue passivated (A2K)

Galvanized steel, blue passivated (A2K)

Products specifications

Thread type x nominal diameter (D)	M3
Wing height (h₁)	9 mm
Width of wing on nut (e₁)	17 mm
Material	Steel
Surface	Galvanised
Form	American type
Thread type	Metric thread
Outer diameter (d1)	7 mm
Wing thickness (g)	2 mm

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (D)	M3
Wing height (h₁)	9 mm
Width of wing on nut (e₁)	17 mm
Material	Steel
Surface	Galvanised
Form	American type
Thread type	Metric thread
Outer diameter (d1)	7 mm
Wing thickness (g)	2 mm
