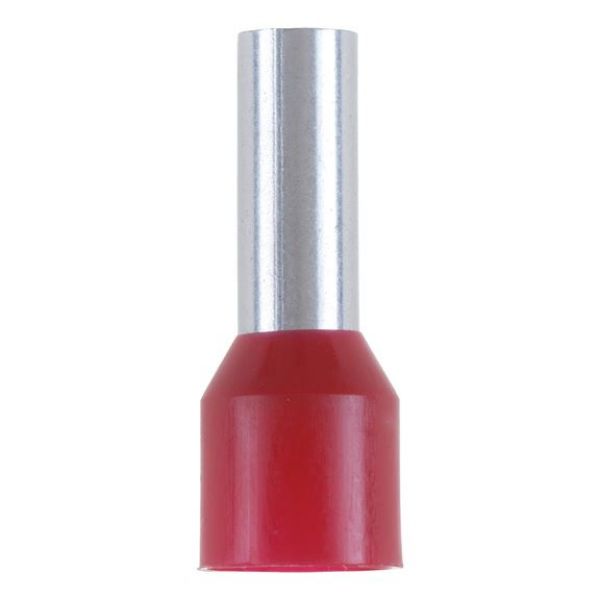

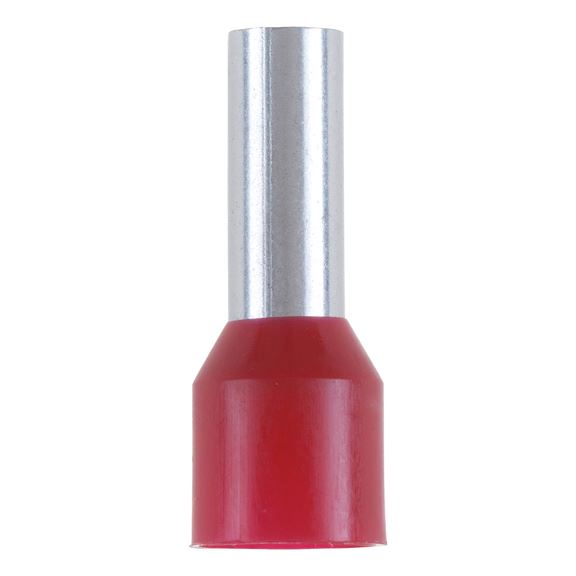

Wire end ferrule with plastic sleeve

Article No. 0557300105

Wire end ferrule with plastic sleeve, DIN 46228 WENDFRE-DIN46228-CU-(J2N)-RED-10,0X12,0

€7.67 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

DIN 46228 Part 4

DIN 46228 Part 4

Products specifications

Wire cross section	10.0 mm²
Colour	Red
Length (L1)	22 mm
Sleeve length (l2)	12 mm
Sleeve inside diameter (d1)	4.5 mm
Sleeve-wall thickness (s1)	0.20 mm
Internal diameter of insertion funnel (d2)	7.6 mm
Wall thickness of insertion funnel (s2)	0.40 mm
Max. temperature resistance	110 °C
Material	Copper
Surface	Tin-plated
Halogen-free	Yes
