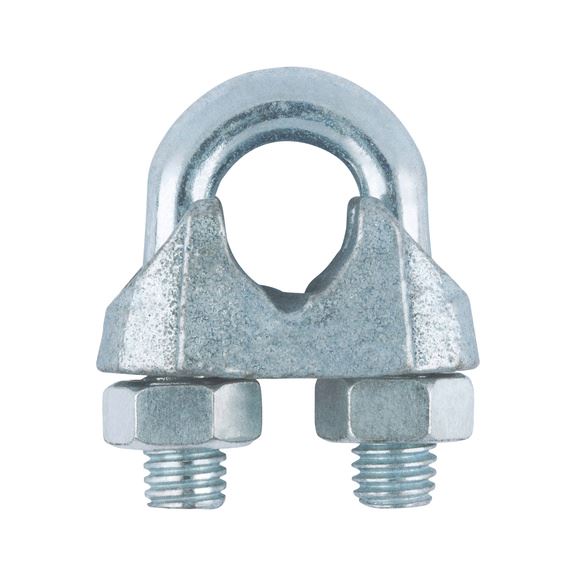

Wire rope clamp

Article No. 0520516

DIN 741 steel galvanised ROPCMP-DIN741-(A2K)-D5/16-8,0

€0.35 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 741, galvanised steel, blue passivated (A2K)

Specification
Application
Technical Information
Documents

DIN 741, galvanised steel, blue passivated (A2K)

Instructions

Mount wire rope clamps close to thimble, in the case of rounded thimbles at a distance of at least twice the thimble . Attach so that there is at least one rope width of space between one another. The clamping bars must always be placed on the end of the rope that is not under stress.

Products specifications

Thread type x nominal diameter (d₁)	M6
Height (h₁)	34 mm
Width (b₁)	30 mm
Material	Steel
Surface	Galvanised
Suitable for rope diameter	8.5 mm
DIN	741
Product weight (per item)	29.285 g
Internal diameter (d3)	8 mm
Nominal diameter (d)	6 mm
Thread type	Metric thread
