WIT-PM 200

Article No. 5918242300

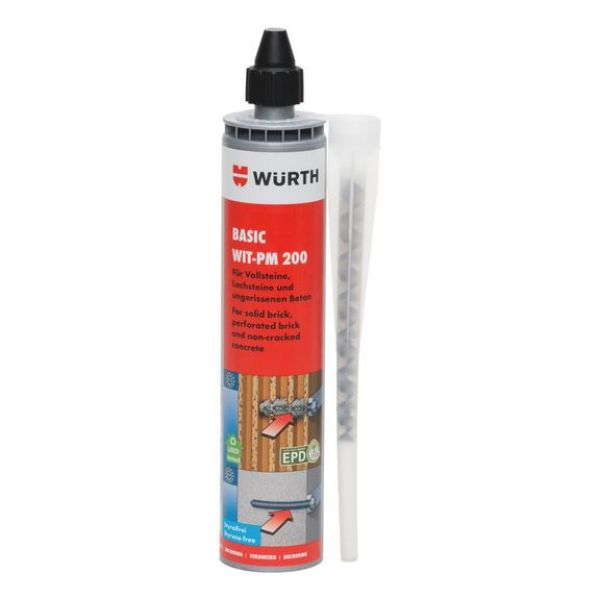

Injection mortar Basic WIT-PM 200 ANC-MORT-(WIT-PM200)-CART-300ML

€15.10 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Individual attachment in non-cracked concrete and solid and perforated brick masonry

Individual fastening of non-cracked concrete:

Anchor rod W-VI-A, anchor rod W-VD-A, standard threaded rod with acceptance test certificate 3.1

Individual attachment in masonry (system with perforated sleeve SH):

Anchor rod W-VI-A, standard threaded rod with acceptance certificate 3.1, perforated sleeve SH

Two-part reactive resin mortar, styrene-free polyester

Proof of Performance

European Technical Assessment ETA-12/0569: Individual attachment + non-cracked concrete (anchor rod W-VI-A, anchor rod W-VD-A, standard threaded rod with acceptance test certificate 3.1)

European Technical Approval ETA-13/0037: Individual attachment + masonry (anchor rod W-VI-A, standard threaded rod 3.1, perforated sleeve SH, aerated concrete only without perforated sleeve)

Specification
Application
Technical Information
Documents

Individual attachment in non-cracked concrete and solid and perforated brick masonry

Individual fastening of non-cracked concrete:

Anchor rod W-VI-A, anchor rod W-VD-A, standard threaded rod with acceptance test certificate 3.1

Individual attachment in masonry (system with perforated sleeve SH):

Anchor rod W-VI-A, standard threaded rod with acceptance certificate 3.1, perforated sleeve SH

Two-part reactive resin mortar, styrene-free polyester

Proof of Performance

European Technical Assessment ETA-12/0569: Individual attachment + non-cracked concrete (anchor rod W-VI-A, anchor rod W-VD-A, standard threaded rod with acceptance test certificate 3.1)

European Technical Approval ETA-13/0037: Individual attachment + masonry (anchor rod W-VI-A, standard threaded rod 3.1, perforated sleeve SH, aerated concrete only without perforated sleeve)

Application area

Anchoring in non-cracked concrete, solid and perforated masonry, aerated concrete

Suitable for attaching wooden structures, metal structures, metal profiles, brackets, grilles, sanitary ware, pipes, cable conduits, etc.

Products specifications

Contents	300 ml
Suitable application gun	Battery-powered application gun 330ml<br>Application gun HandyMax<br>Application gun MULTI<br>Application gun WIT 330ml<br>Silicone application gun 310ml
Min./max. processing temperature /conditions	-5 to 35 °C / temperature in the anchorage ground during processing and hardening
Min./max. ambient temperature / Conditions	-40 to 80 °C / after completely curing process
Temperature resistance, long-term temperatures max.	50 °C
Temperature resistance, short-term temperatures max.	80 °C
Shelf life from production/conditions	12 Month / cool and dry storage area, 5°C to 25°C
Approval	ETA-12/0569<br>ETA-13/0037
Chemical basis	Polyester, styrene free
Colour	Grey

Datasheet 1, 2

Assembly Instructions

ETA Approval

Products specifications

Contents	300 ml
Suitable application gun	Battery-powered application gun 330ml<br>Application gun HandyMax<br>Application gun MULTI<br>Application gun WIT 330ml<br>Silicone application gun 310ml
Min./max. processing temperature /conditions	-5 to 35 °C / temperature in the anchorage ground during processing and hardening
Min./max. ambient temperature / Conditions	-40 to 80 °C / after completely curing process
Temperature resistance, long-term temperatures max.	50 °C
Temperature resistance, short-term temperatures max.	80 °C
Shelf life from production/conditions	12 Month / cool and dry storage area, 5°C to 25°C
Approval	ETA-12/0569<br>ETA-13/0037
Chemical basis	Polyester, styrene free
Colour	Grey
