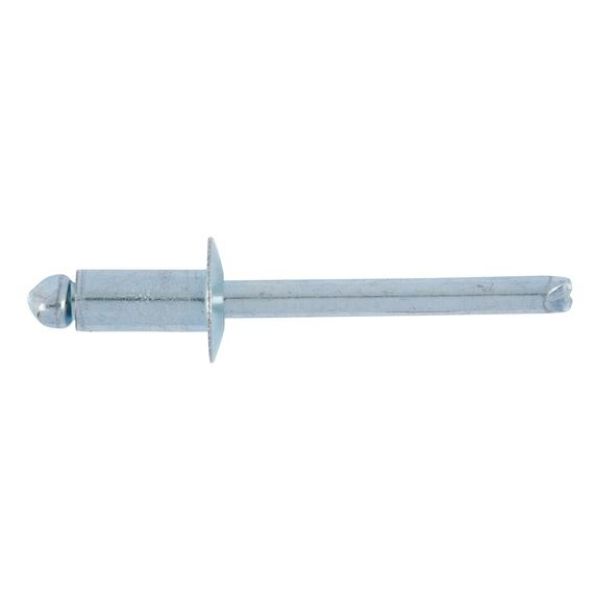

Blind rivet, open, with break mandrel and flat head

Article No. 51415408

ISO 15977-L flat head aluminium/steel zinc plated RIV-ISO15977-L-ALU/ST-(3,0-5,0)-4,0X8

€4.34 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

ISO 15977, flat head, aluminium/steel

Sleeve: Al-Mg aluminium 2.5; pin: Galvanised steel, blue passivated (A2K)

Tensile forces and shear forces in line with ISO 15977 class L

ISO 15977, flat head, aluminium/steel

Sleeve: Al-Mg aluminium 2.5; pin: Galvanised steel, blue passivated (A2K)

Tensile forces and shear forces in line with ISO 15977 class L

Products specifications

Nominal diameter x length (d1 x l1)	4.0 x 8 mm
Min./max. grip range	3.0-5.0 mm
Head diameter (d_k)	8.4 mm
Head height (k₁)	1.7 mm
Min./max. drill hole diameter	4.1-4.2 mm
Shear-fracture load	850 N
Tensile fracture load	1200 N
Material of the sleeve	Aluminium
Material of the mandrel	Steel
Surface of the sleeve	Plain
Surface of the mandrel	Zinc plated
Standards	ISO 15977
RoHS-compliant	Yes
