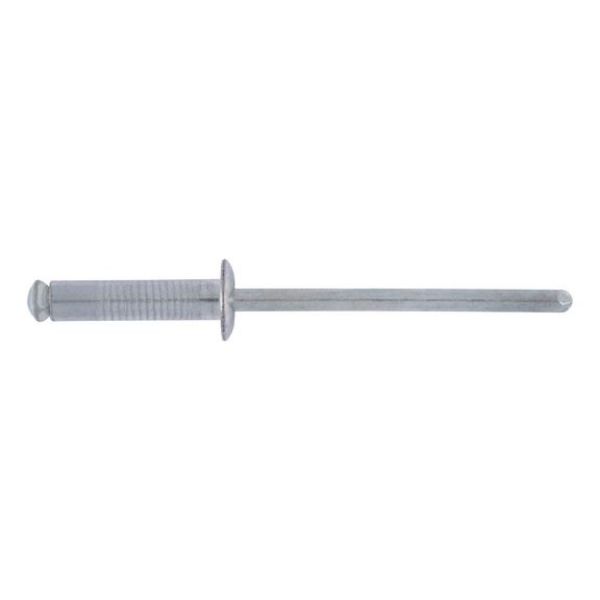

Blind rivet with soft claws and round pan head

Article No. 0937004821

Soft claw blind rivet aluminium/steel galvanised RIV-FL-ALU/ST-(-/A2K)-(8-15)-4,8X21

€18.88 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

Sleeve: Aluminium. Mandrel: Galvanised steel, blue passivated (A2K)

Sleeve: Aluminium. Mandrel: Galvanised steel, blue passivated (A2K)

Products specifications

Nominal diameter (d₁)	4.8 mm
Length (l₁)	21 mm
Head diameter (d_k)	9.5 mm
Head height (k₁)	1.1 mm
Material of the sleeve	Aluminium
Material of the mandrel	Steel
Surface of the sleeve	Plain
Surface of the mandrel	Galvanised
Min./max. grip range	8.0-16.0 mm
Drill hole diameter	5 mm
Shear-fracture load	1800 N
Tensile fracture load	2000 N
Nominal diameter x length (Ø d x l)	4.8 x 21 mm
Head type	Truss head
Product weight (per item)	3.549 g
