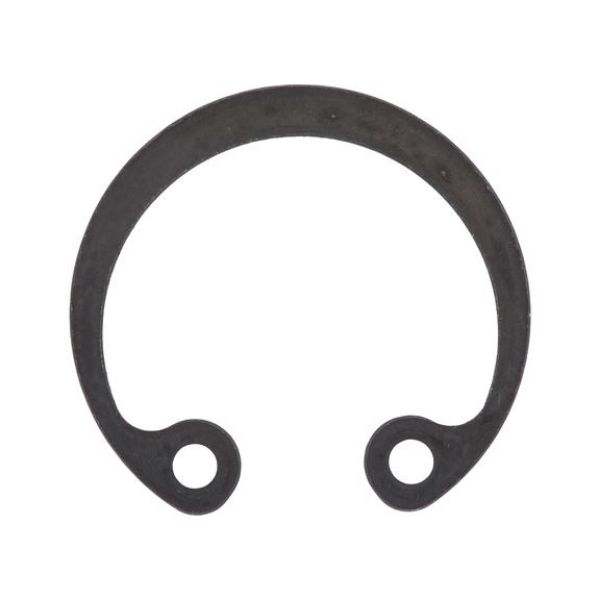

Circlip for bore hole Standard design, shape J

Article No. 04399

DIN 472 spring steel plain, shape J CRCLIP-BRE-DIN472-J-9X0,8

€5.48 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

DIN 472 for bore holes, spring steel, phosphated and oiled

DIN 472 for bore holes, spring steel, phosphated and oiled

Products specifications

Suitable for holes	9 mm
Suitable for groove diameter	9.4 mm
Outer diameter (d₁)	9.8 mm
Eye width (a₁)	2.5 mm
Width (b₁)	1.3 mm
Thickness (s₁)	0.8 mm
Material	Spring steel
Surface	Bare
Form	J
Version	Standard design
