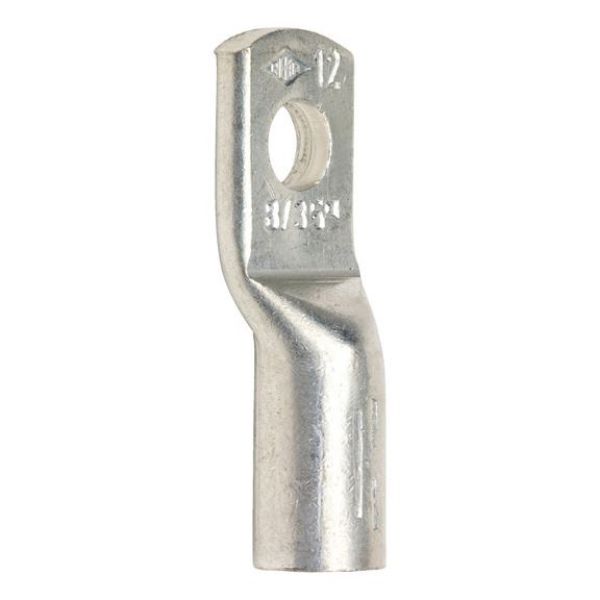

Compression cable lug

Article No. 09675258

Compression cable lug DIN 46235 COMPCBLLUG-RG-CU-(J2N)-DIN-M8-25,0SMM

€1.37 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

DIN 46235

Notice

The user must check the inserted cable (using a pull-out test, if required).

DIN 46235

Notice

The user must check the inserted cable (using a pull-out test, if required).

Products specifications

Wire cross section	25 mm²
Flange hole	M8
Code number according to standard	10
Wire diameter (d₁)	7 mm
Diameter of hole (d₂)	8.4 mm
Distance between sleeve end and centre of hole (l₁)	38 mm
Sleeve length	20 mm
Width (B)	16 mm
Max. temperature resistance	125 °C
Material	Electrolytic copper
Surface	Tin-plated

Products specifications

Wire cross section	25 mm²
Flange hole	M8
Code number according to standard	10
Wire diameter (d₁)	7 mm
Diameter of hole (d₂)	8.4 mm
Distance between sleeve end and centre of hole (l₁)	38 mm
Sleeve length	20 mm
Width (B)	16 mm
Max. temperature resistance	125 °C
Material	Electrolytic copper
Surface	Tin-plated
