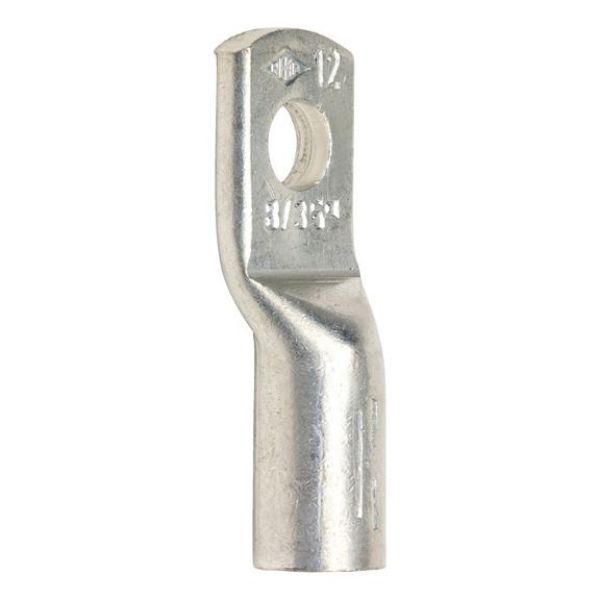

Compression cable lug

Article No. 096752510

Compression cable lug DIN 46235 COMPCBLLUG-RG-CU-(J2N)-DIN-M10-25,0SMM

€1.42 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

DIN 46235

Notice

The user must check the inserted cable (using a pull-out test, if required).

DIN 46235

Notice

The user must check the inserted cable (using a pull-out test, if required).

Application area

For multi-wire, fine-wire and very fine wire copper conductors, such as compliant with DIN EN 60228 Class 2, 5 and 6

Products specifications

Wire cross section	25 mm²
Flange hole	M10
Code number according to standard	10
Wire diameter (d₁)	7 mm
Diameter of hole (d₂)	10.5 mm
Distance between sleeve end and centre of hole (l₁)	38 mm
Sleeve length	20 mm
Width (B)	17 mm
Max. temperature resistance	125 °C
Material	Electrolytic copper
Surface	Tin-plated

Würth Catalogue(2)

Catalogue page as PDF 1 | 2

Products specifications

Wire cross section	25 mm²
Flange hole	M10
Code number according to standard	10
Wire diameter (d₁)	7 mm
Diameter of hole (d₂)	10.5 mm
Distance between sleeve end and centre of hole (l₁)	38 mm
Sleeve length	20 mm
Width (B)	17 mm
Max. temperature resistance	125 °C
Material	Electrolytic copper
Surface	Tin-plated
