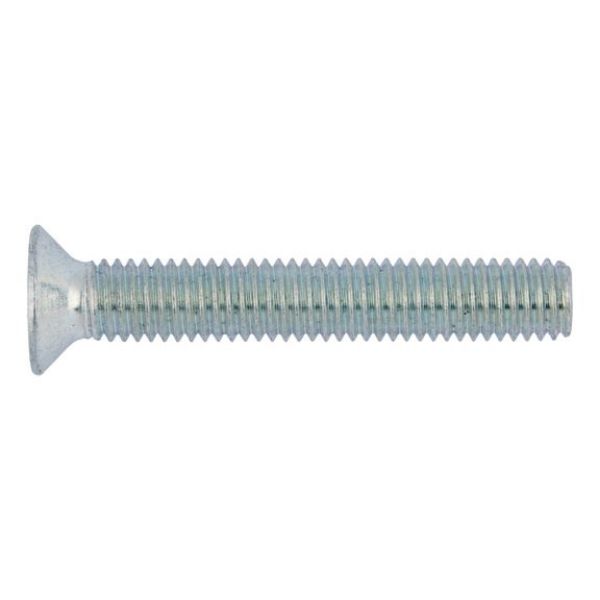

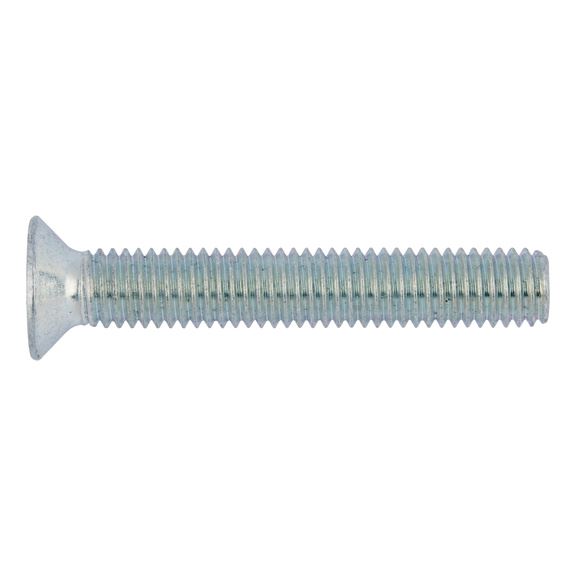

Countersunk head screw with recessed head, H

Article No. 0048520

DIN 965 galvanised steel 4.8 SCR-CS-DIN965-4.8-H2-(A2K)-M5X20

€4.25 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 965, steel 4.8, galvanised, blue passivated (A2K)

Notice

DIN 965 has been withdrawn and replaced by ISO 7046 part 1/part 2. There is some limited similarity (some head heights and head diameters have been changed | Thread lengths changed | nominal Ø M1.6 removed | strength class 5.8 and A4-70 omitted | thread lengths changed | recessed head penetration depths changed).

Specification
Technical Information
Documents

DIN 965, steel 4.8, galvanised, blue passivated (A2K)

Notice

Products specifications

Thread type x nominal diameter (d₁)	M5
Length (l₁)	20 mm
Head diameter (d_k)	9.2 mm
Head height (k₁)	2.5 mm
Standards	DIN 965
Material	Steel
Property class	4.8
Surface	Galvanised
RoHS-compliant	Yes
Head type	Countersunk head
Drive type	Crosshead
Internal drive	H2
Thread type	Metric thread
Pitch	0.8 mm
Thread format	Standard metric thread
Product class	A
