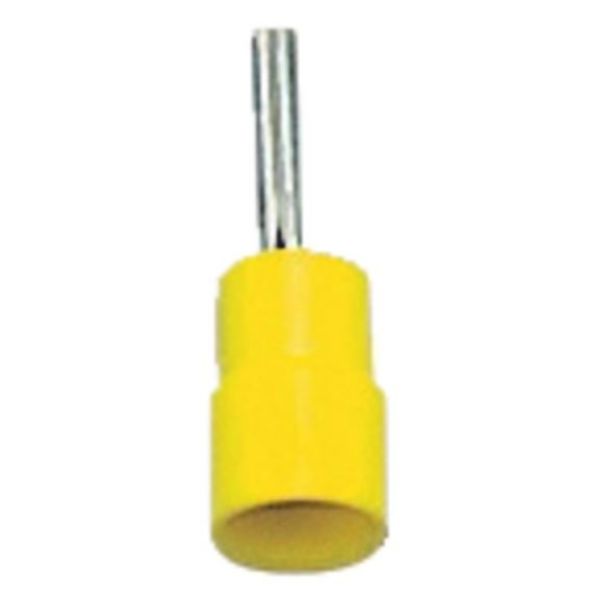

Crimp cable lug, pin shape

Article No. 096740240

Crimp cable lug insulated pin shape CRMPCBLLUG-PIN-46231-CU-(J2N)-6,0SMM

€19.47 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Polyamide insulated

Expanded insulating sleeve

Harmonised conductors with stronger cable core insulation can be processed without a problem.

"Easy Entry" insertion

Easy, fast and safe insertion of the conductor

High-quality polyamide

Suitable for use in situations involving changing loads and temperature fluctuations

Notice

The fitter must check the inserted cable (by trying to pull it out if necessary).

Proof of Performance

UL
Pin shape in accordance with DIN 46231

Specification
Application
Technical Information

Polyamide insulated

Expanded insulating sleeve

Harmonised conductors with stronger cable core insulation can be processed without a problem.

"Easy Entry" insertion

Easy, fast and safe insertion of the conductor

High-quality polyamide

Suitable for use in situations involving changing loads and temperature fluctuations

Notice

The fitter must check the inserted cable (by trying to pull it out if necessary).

Proof of Performance

UL
Pin shape in accordance with DIN 46231

Application area

For fine and superfine stranded copper conductors

Products specifications

Min./max. wire cross section	4-6 mm²
Colour	Yellow
Length	25.5 mm
Length of pin	13 mm
Max. nominal voltage	600 V/AC
Max. temperature conditions	105 °C
Material	Copper
Surface	Tin-plated
Insulating material	Nylon
Halogen-free	Yes
Silicone-free	Yes

Products specifications

Min./max. wire cross section	4-6 mm²
Colour	Yellow
Length	25.5 mm
Length of pin	13 mm
Max. nominal voltage	600 V/AC
Max. temperature conditions	105 °C
Material	Copper
Surface	Tin-plated
Insulating material	Nylon
Halogen-free	Yes
Silicone-free	Yes
