Crimp cable lug, push connector including blade connector

Article No. 05589444

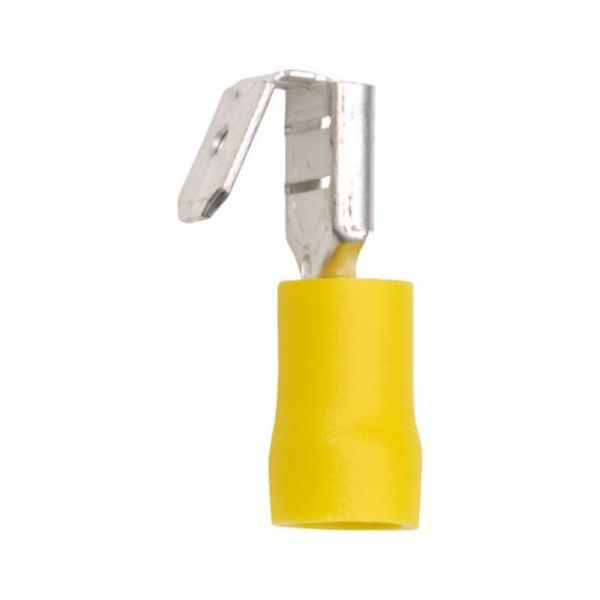

Push connector including blade connector PSHCON-DOUBLE-YELLOW-6,3X0,8MM

€30.68 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

PVC insulated

Notice

The fitter must check the inserted cable (by trying to pull it out if necessary).

PVC insulated

Notice

The fitter must check the inserted cable (by trying to pull it out if necessary).

Application area

For fine and superfine stranded copper conductors

Products specifications

Min./max. wire cross section	4-6 mm²
Colour	Yellow
Nominal size of flat plug/push connector/blade connector	6.3 x 0.8 mm
Max. nominal voltage	600 V/AC
Min./max. temperature conditions	-10 to 75 °C
Material	Copper
Surface	Tin plated
Insulating material	PVC
Halogen-free	No
Silicone-free	No
