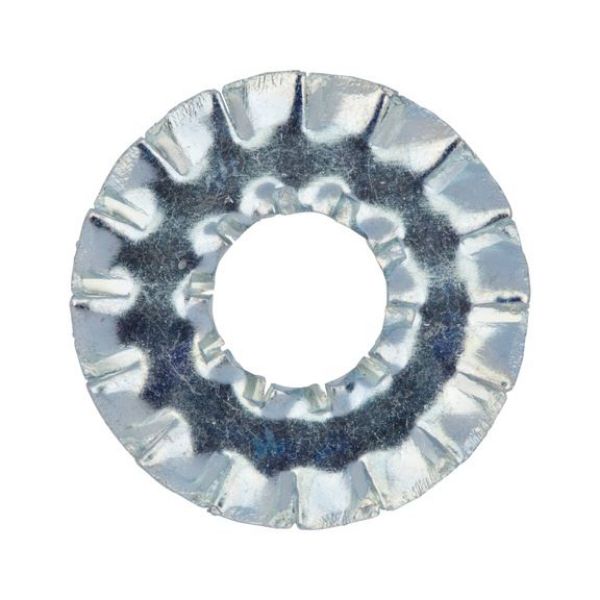

Double serrated lock washer

Article No. 04466

DIN 6798 similar steel galvanised WSH-SER-DB-SIDIN6798-(A2K)-D6,1

€9.09 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Galvanised steel similar to DIN 6798, blue passivated (A2K)

Serrated lock washers are virtually positive-fitting securing elements that lock with the surface of the components when the screw or nut is tightened.

Specification
Technical Information
Documents

Galvanised steel similar to DIN 6798, blue passivated (A2K)

Serrated lock washers are virtually positive-fitting securing elements that lock with the surface of the components when the screw or nut is tightened.

Products specifications

Suitable for screw thread	M6
Internal diameter (d₁)	6.1 mm
Outer diameter (d₂)	18.2 mm
Height	2.1 mm
Thickness	0.7 mm
Material	Steel
Surface	Galvanised
Version	Inner serrating and externally serrated
DIN	Similar to 6798
