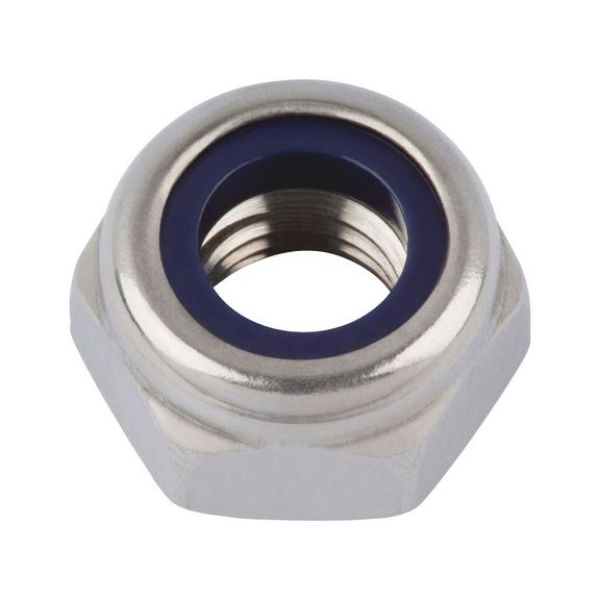

Hexagon nut with clamping piece (non-metal insert) A2

Article No. 03915

DIN 985 plain A2 stainless steel NUT-HEX-SLOK-DIN985-A2-WS8-M5

€4.15 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 985, plain A2 stainless steel

Notice

DIN 985 has been withdrawn and replaced by ISO 10511. There is some limited similarity (thread M7, M18, M22, M27, M33 and threads with nominal diameter > M36 removed | Fine thread removed. Width across flats changed for threads M10, M12 and M14 to 16, 18 and 21 mm | Strength classes changed to 04 and 05).

Specification
Technical Information
Documents

DIN 985, plain A2 stainless steel

Notice

Products specifications

Thread type x nominal diameter (D)	M5
Height (m₁)	5 mm
External drive (s₁)	WS8
Standards	DIN 985
Material	Stainless steel A2
Property class	70
Surface	Bare
Version	Polyamide clamping piece
Thread type	Metric thread

Würth Catalogue(2)

Catalogue page as PDF 1 | 2

Flip catalog

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (D)	M5
Height (m₁)	5 mm
External drive (s₁)	WS8
Standards	DIN 985
Material	Stainless steel A2
Property class	70
Surface	Bare
Version	Polyamide clamping piece
Thread type	Metric thread
