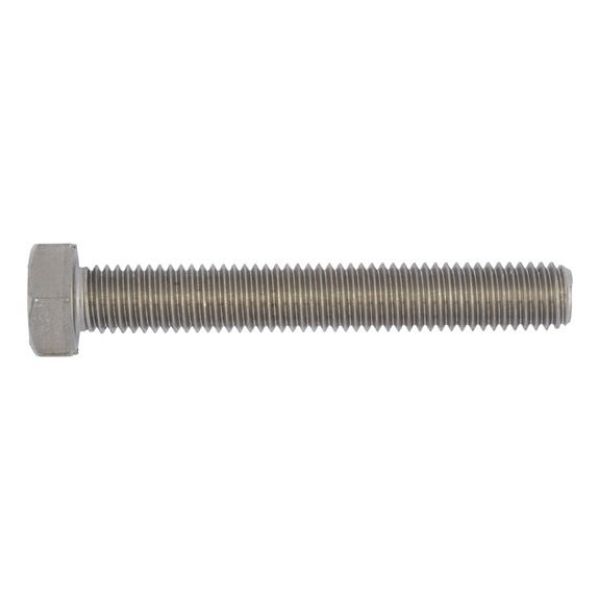

Hexagonal bolt with thread up to the head

Article No. 0096440

ISO 4017 stainless steel A2 50, A2 70 plain SCR-HEX-ISO4017-A2/70-WS7-M4X40

€7.08 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

ISO 4017, stainless steel A2-50 and A2-70, plain

Notice

ISO 4017 replaces DIN 933 | There is some compatibility | Nominal size extended | Widths across flats for M10, M12, M14 and M22 changed. A2-70 strength up to and including nominal size M24 | above nominal size M27 strength A2-50

Specification
Technical Information
Documents

ISO 4017, stainless steel A2-50 and A2-70, plain

Notice

Products specifications

Thread type x nominal diameter (d₁)	M4
Length (l₁)	40 mm
Head height (k₁)	2.8 mm
External drive (s₁)	WS7
Standards	ISO 4017
Material	Stainless steel A2
Property class	70
Surface	Bare
RoHS-compliant	Yes
Head type	Hexagon head
Drive type	Outer hexagon
Thread type	Metric thread
Thread format	Standard metric thread
Thread design	Full thread
Product class	A
