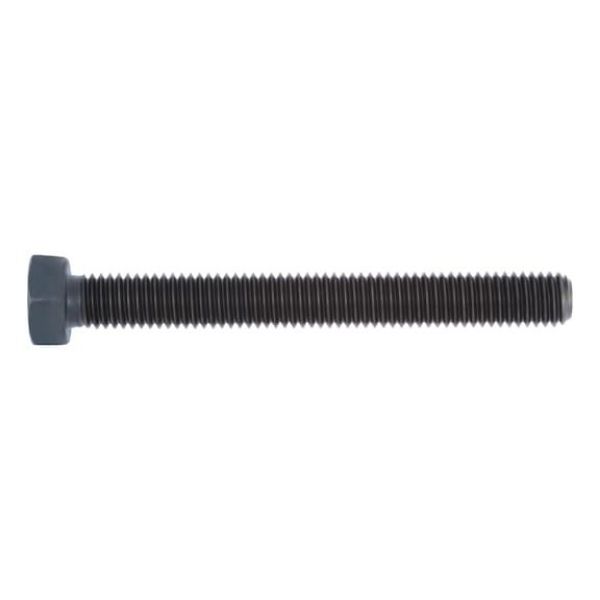

Hexagonal bolt with threading up to the head

Article No. 00561450

DIN 933 bare steel 10.9 SCR-HEX-DIN933-10.9-WS22-M14X50

€90.21 inc. VAT price per 100 PCS

Available on Order
Price may vary

Packaging Unit *

Qty:

+ -

DIN 933, steel 10.9, plain

Notice

DIN 933 has been withdrawn and replaced by ISO 4017. There is some similarity (nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22).

Specification
Technical Information
Documents

DIN 933, steel 10.9, plain

Notice

DIN 933 has been withdrawn and replaced by ISO 4017. There is some similarity (nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22).

Products specifications

Thread type x nominal diameter (d₁)	M14
Length (l₁)	50 mm
Head height (k₁)	8.8 mm
External drive (s₁)	WS22
Standards	DIN 933
Material	Steel
Property class	10.9
Surface	Plain
Head type	Hexagon head
Drive type	Outer hexagon
Thread type	Metric thread
Thread format	Standard metric thread
Thread design	Full thread
Product class	A
RoHS-compliant	Yes

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Products specifications

Thread type x nominal diameter (d₁)	M14
Length (l₁)	50 mm
Head height (k₁)	8.8 mm
External drive (s₁)	WS22
Standards	DIN 933
Material	Steel
Property class	10.9
Surface	Plain
Head type	Hexagon head
Drive type	Outer hexagon
Thread type	Metric thread
Thread format	Standard metric thread
Thread design	Full thread
Product class	A
RoHS-compliant	Yes
