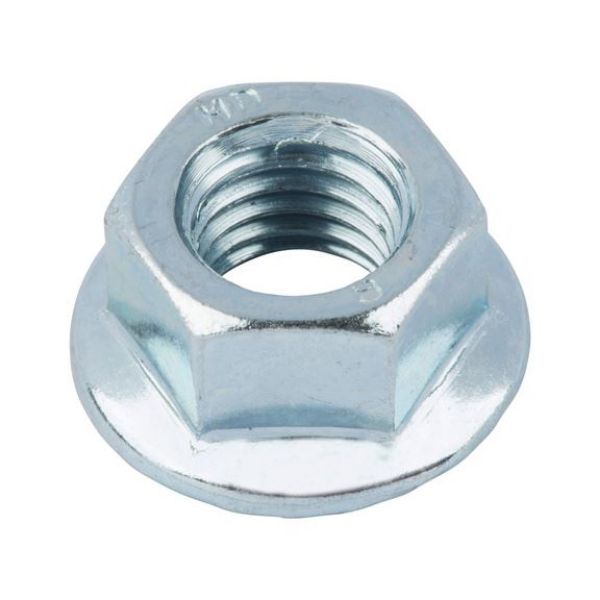

Hexagonal nut with flange

Article No. 039406

DIN 6923 zinc-plated steel 8 locking teeth NUT-SER-SIDIN6923-8-WS10-(A2K)-M6

€4.13 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 6923, steel 8, zinc-plated, blue passivated (A2K), with locking teeth

Notice

DIN 6923 has been withdrawn and replaced by EN 1661. There is some similarity (Fine thread removed | Width across flats for size M10 changed from 15 mm to 16 mm).

Specification
Technical Information
Documents

DIN 6923, steel 8, zinc-plated, blue passivated (A2K), with locking teeth

Notice

DIN 6923 has been withdrawn and replaced by EN 1661. There is some similarity (Fine thread removed | Width across flats for size M10 changed from 15 mm to 16 mm).

Products specifications

Thread type x nominal diameter (D)	M6
Height (h₁)	6 mm
Flange diameter (d_c)	14.2 mm
External drive (s₁)	WS10
Material	Steel
Property class	8
Surface	Galvanised
Head details	Ratchet
DIN	Similar to 6923
Thread type	Metric thread
Pitch	1 mm
Width across corners (e)	11.05 mm
Nominal diameter	6 mm

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (D)	M6
Height (h₁)	6 mm
Flange diameter (d_c)	14.2 mm
External drive (s₁)	WS10
Material	Steel
Property class	8
Surface	Galvanised
Head details	Ratchet
DIN	Similar to 6923
Thread type	Metric thread
Pitch	1 mm
Width across corners (e)	11.05 mm
Nominal diameter	6 mm
