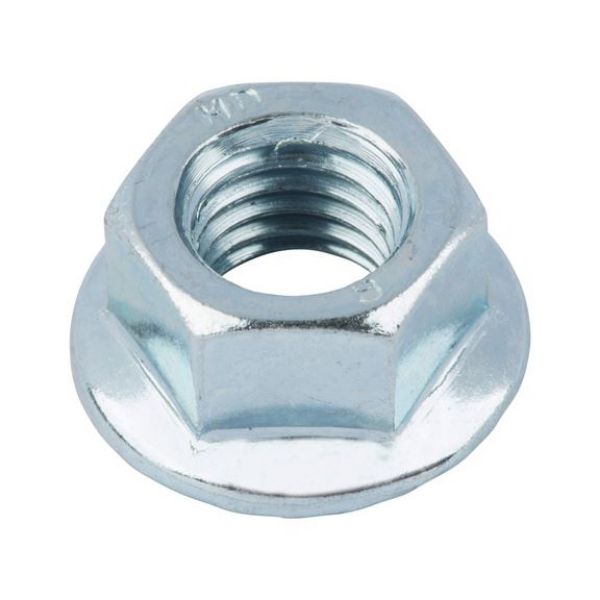

Hexagonal nut with flange

Article No. 039408

DIN 6923 zinc-plated steel 8 locking teeth NUT-SER-SIDIN6923-8-WS13-(A2K)-M8

€9.20 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

Packaging Unit *

DIN 6923, steel 8, zinc-plated, blue passivated (A2K), with locking teeth

Notice

DIN 6923 has been withdrawn and replaced by EN 1661. There is some similarity (Fine thread removed | Width across flats for size M10 changed from 15 mm to 16 mm).

DIN 6923, steel 8, zinc-plated, blue passivated (A2K), with locking teeth

Notice

DIN 6923 has been withdrawn and replaced by EN 1661. There is some similarity (Fine thread removed | Width across flats for size M10 changed from 15 mm to 16 mm).

Products specifications

Thread type x nominal diameter (D)	M8
Height (h₁)	8 mm
Flange diameter (d_c)	17.9 mm
External drive (s₁)	WS13
Material	Steel
Property class	8
Surface	Galvanised
Head details	Ratchet
DIN	Similar to 6923
Thread type	Metric thread
Pitch	1.250 mm
Width across corners (e)	14.38 mm
Nominal diameter	8 mm

Products specifications

Thread type x nominal diameter (D)	M8
Height (h₁)	8 mm
Flange diameter (d_c)	17.9 mm
External drive (s₁)	WS13
Material	Steel
Property class	8
Surface	Galvanised
Head details	Ratchet
DIN	Similar to 6923
Thread type	Metric thread
Pitch	1.250 mm
Width across corners (e)	14.38 mm
Nominal diameter	8 mm
