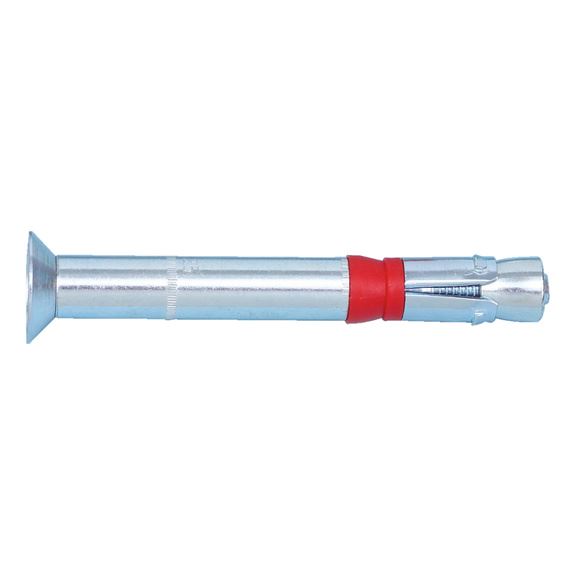

High-performance anchor with countersunk screw W-HAZ-SK/S

Article No. 0905210203

High-performance anchor W-HAZ-SK/S ANC-(W-HAZ/SK)-(A2K)-40-M6X100

€3.62 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

Packaging Unit *

Heavy-duty anchor for high loads in cracked and non-cracked concrete, ideal for flush-mounted fixtures, such as railings or handrails. Zinc-plated steel

High load-bearing capacities
Time-saving push-through installation
Immediate load-bearing capacity — no waiting
Torque-controlled expanding galvanised steel anchor
Countersunk head design for an elegant appearance (e.g. for railings)

Proof of Performance

ETA-02/0031 for individual attachment, option 1, cracked and non-cracked concrete, seismic performance category C1 and C2
Fire resistance: F30, F60, F90 and F120; exposure to fire according to DIN 1363-1:1999-10 (uniform temperature-time curve)
Fire resistance: R30, R60, R90 and R120; TR020 (included in ETA-02/0031)

Heavy-duty anchor for high loads in cracked and non-cracked concrete, ideal for flush-mounted fixtures, such as railings or handrails. Zinc-plated steel

High load-bearing capacities
Time-saving push-through installation
Immediate load-bearing capacity — no waiting
Torque-controlled expanding galvanised steel anchor
Countersunk head design for an elegant appearance (e.g. for railings)

Proof of Performance

ETA-02/0031 for individual attachment, option 1, cracked and non-cracked concrete, seismic performance category C1 and C2
Fire resistance: F30, F60, F90 and F120; exposure to fire according to DIN 1363-1:1999-10 (uniform temperature-time curve)
Fire resistance: R30, R60, R90 and R120; TR020 (included in ETA-02/0031)

Application area

Individual attachment with approval

Normal concrete C20/25 to C50/60 (cracked and non-cracked concrete, seismic performance category C1 and C2 for sizes M8–M12)

e.g. metal structures, metal profiles, brackets, base plates, supports, cable conduits, pipes, railings, machines etc.

Individual attachment without approval

Can be used in concrete < C20/25 and compression-proof natural stone

W-HAZ/S approved only for use in dry indoor room conditions

Products specifications

Metric anchor diameter	M6
Anchor length (l)	100 mm
Max. attachment height (t fix)	40 mm
Countersink diameter	16.5 mm
Countersinking depth	3.9 mm
Drive type	Hexagon socket
Nominal drill-bit diameter (d 0)	10 mm
Drill hole depth (h 1)	65 mm
Effective anchoring depth (h ef)	50 mm
Torque during anchoring (T inst)	110 Nm
Through-hole in the component to be connected (d f)	12 mm

Products specifications

Metric anchor diameter	M6
Anchor length (l)	100 mm
Max. attachment height (t fix)	40 mm
Countersink diameter	16.5 mm
Countersinking depth	3.9 mm
Drive type	Hexagon socket
Nominal drill-bit diameter (d 0)	10 mm
Drill hole depth (h 1)	65 mm
Effective anchoring depth (h ef)	50 mm
Torque during anchoring (T inst)	110 Nm
Through-hole in the component to be connected (d f)	12 mm
