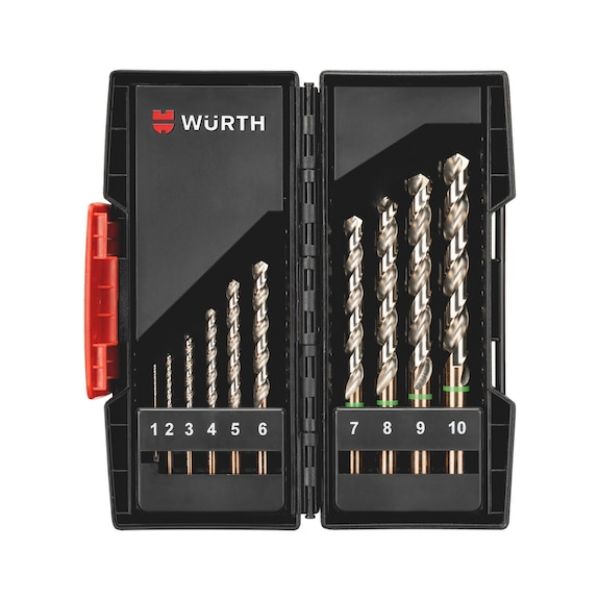

HSCo DIN 338 type RN OXID twist drill bit, 10 pieces Limited edition

Article No. 0626000010

Twist drill bit HSCo DIN 338 type RN OXID 10 pcs DRL-MET-SORT-DIN338-HSCO-OX-(D1-10)-1,0 Art.-no. 0626000010 EAN 4099618803277

€41.30 inc. VAT price per 1 PCS

LOW STOCK

Packaging Unit *

Qty:

+ -

Newly developed ORSY system cassette with precise HSCo twist drill bits for metalworking at an attractive special price

HSCo twist drill bits in premium ZEBRA quality

Fast drilling with perfect chip removal thanks to large chip spaces and small core
Ideal for annular cutting due to the very precise point geometry

Newly developed system cassette suitable for the ORSY system

Includes 10 drill bits with integral bore diameters from 1.0 mm to 10.0 mm
When the cassette is opened, the twist drill bits can be accessed easily due to the flap that opens towards you
Compact and space-saving

Specification
Application
Technical Information
Documents

Newly developed ORSY system cassette with precise HSCo twist drill bits for metalworking at an attractive special price

HSCo twist drill bits in premium ZEBRA quality

Fast drilling with perfect chip removal thanks to large chip spaces and small core
Ideal for annular cutting due to the very precise point geometry

Newly developed system cassette suitable for the ORSY system

Includes 10 drill bits with integral bore diameters from 1.0 mm to 10.0 mm
When the cassette is opened, the twist drill bits can be accessed easily due to the flap that opens towards you
Compact and space-saving

Application area

For machining stainless steel (e.g. V2A, V4A), heat-resistant steels and titanium. Also for general, broad applications in steel up to 1,200 N/mm² and in cast iron.

Products specifications

Number of pieces in assortment/set	10 PCS
Quality	ZEBRA-Premium
Standard / drilling depth	DIN 338 / 5xD
Shank style	Cylindrical
Material to be processed	Steel, Cast iron, Stainless steel, Titanium
Material of sub-group	General structural steels, Non-alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron, Ductile iron, Malleable cast iron, White cast iron, Stainless steels, martensitic, Stainless steels, sulphurated, Stainless steels, austenitic, Titanium, Titanium alloys, Spring steels, Magnesium alloys, Copper, low-alloyed, Bronze, long-chipping, Bronze, short-chipping, Brass, long-chipping, Brass, short-chipping, Plastics, thermoset, Plastics, thermoplastic
Surface	Oxide finish
Cutting material	HSCo
Suitable for drill (points system)	3 of 4 points
Suitable for cordless drills (points system)	3 of 4 points
Suitable for upright drilling machine (points system)	3 of 4 points
Suitable for milling-drilling centre (points system)	2 of 4 points
Service life (points system)	3 of 4 points
Drilling speed (point system)	3 of 4 points
Bore hole quality (point system)	3 of 4 points
Versatility (points system)	3 of 4 points
Drilling behaviour (point system)	3 of 4 points
Self-centring	Yes
