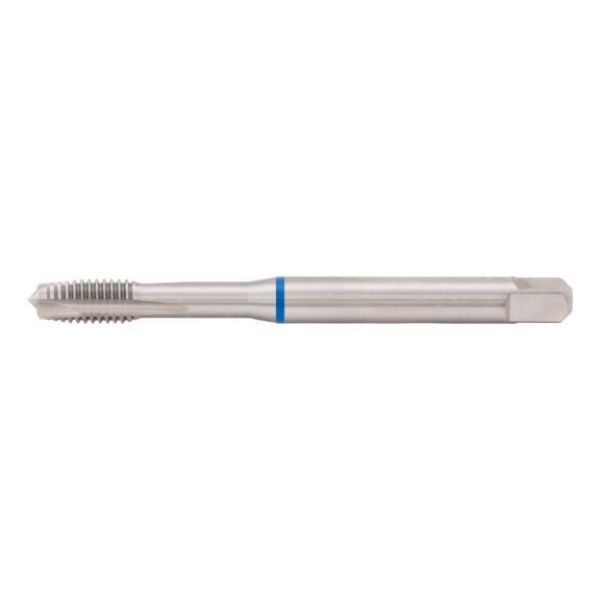

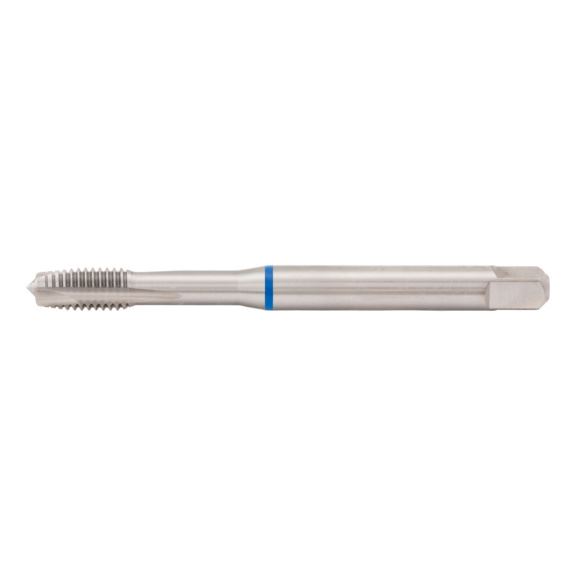

Machine screw tap HSCo blue ring through hole DIN 371/376

Article No. 065310

Machine screw tap HSCo blue form B MATAP-THRGHO-HSCO-DIN371-BLUE-M10 ZEBRA

€20.23 inc. VAT price per 1 PCS

LOW STOCK

Packaging Unit *

Qty:

+ -

The blue ring machine tap for general, wide-ranging applications in long-chipping, non-alloyed steels up to a strength of 850 N/mm².

Cutting geometry precisely tailored to steel materials

Notice

Sufficient coolant and lubricant must be added when cutting threads.
For the machine tap/material assignments, see the overview tables

Specification
Application
Technical Information

The blue ring machine tap for general, wide-ranging applications in long-chipping, non-alloyed steels up to a strength of 850 N/mm².

Cutting geometry precisely tailored to steel materials

Notice

Sufficient coolant and lubricant must be added when cutting threads.
For the machine tap/material assignments, see the overview tables

Instructions

Before reversing the screw tap, the entire spiral point of the tool must be removed from the drill hole. Failure to do so may cause cutting edges to chip or the tool to break.

Products specifications

Thread type	Metric thread
Material to be processed	Steel
Hole type	Clearance hole ≤ 3xD
Suitable for machine type	Milling/drill center<br>Pedestal drilling machine
Quality	ZEBRA-Premium
Thread type x nominal diameter	M10
Pitch	1.5 mm
Thread length (metric thread)	20 mm
Length	100 mm
Shaft diameter	10 mm
Size of square	8 mm
DIN	371
Cutting material	HSCo
Surface	Bare
Form	B
Core hole diameter	8.5 mm
Twist angle	0°
Shank style	Cylindrical with square drive
Tolerance of screw taps	ISO 2 (6H)
Suitable for tensile strength up to	850 N/mm²
Service life (points system)	2 of 4 points
Trueness to gauge (points system)	4 of 4 points
Versatility (points system)	1 of 4 points
Cutting behaviour (points system)	3 of 4 points
Chip formation (points system)	2 of 4 points
Material sub-group	General structural steels<br>Non-alloyed tempering steels
