Machine screw tap HSCo green ring blind hole DIN 371/376

Article No. 065508

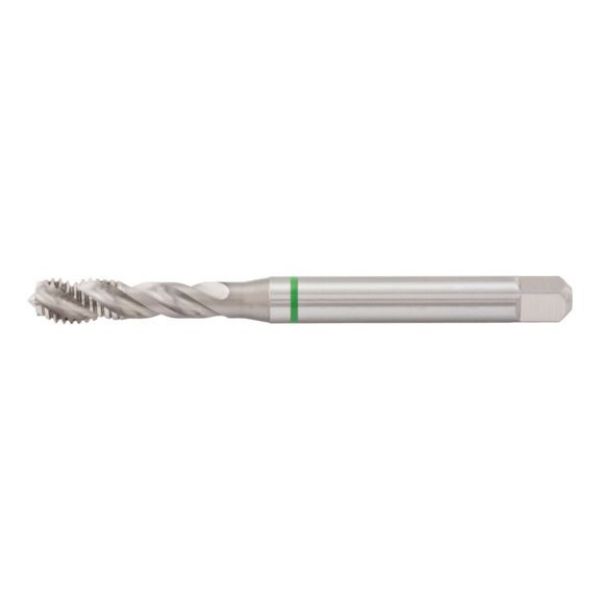

Machine screw tap HSCo green form C MATAP-GRNDHO-HSCO-DIN371-GREEN-M8 ZEBRA
€21.21 inc. VAT price per 1 PCS
LOW STOCK
*
+ -
The low-priced machine tap for processing alloyed and high-alloyed steels (stainless steels), as well as rust-resistant and acid-resistant steels. Also suitable for processing conventional steel materials up to a strength of 850 N/mm².
  • Tool geometry precisely tailored to stainless steel with increased clearance angle
  • Extra homogeneous cutting edge rounding for a high process reliability and longer service life compared to comparable machine taps
Notice
  • Sufficient coolant and lubricant must be added when cutting threads.
  • For the machine tap/material assignments, see the overview tables
The low-priced machine tap for processing alloyed and high-alloyed steels (stainless steels), as well as rust-resistant and acid-resistant steels. Also suitable for processing conventional steel materials up to a strength of 850 N/mm².
  • Tool geometry precisely tailored to stainless steel with increased clearance angle
  • Extra homogeneous cutting edge rounding for a high process reliability and longer service life compared to comparable machine taps
Notice
  • Sufficient coolant and lubricant must be added when cutting threads.
  • For the machine tap/material assignments, see the overview tables
Products specifications
Thread type Metric thread
Material to be processed Steel<br>Stainless steel
Hole type Blind hole ≤ 2.5xD
Suitable for machine type Milling/drill center<br>Pedestal drilling machine
Quality ZEBRA-Premium
Thread type x nominal diameter M8
Pitch 1.25 mm
Length 90 mm
Shaft diameter 8 mm
Size of square 6.2 mm
DIN 371
Cutting material HSCo
Surface Bare
Form C
Core hole diameter 6.8 mm
Twist angle 40° (right)
Shank style Cylindrical with square drive
Tolerance of screw taps ISO 2 (6H)
Suitable for tensile strength up to 1000 N/mm²
Service life (points system) 2 of 4 points
Trueness to gauge (points system) 4 of 4 points
Versatility (points system) 2 of 4 points
Cutting behaviour (points system) 3 of 4 points
Chip formation (points system) 2 of 4 points
Material sub-group Stainless steels, sulphurated<br>Stainless steels, austenitic<br>Stainless steels, martensitic
Products specifications
Thread type Metric thread
Material to be processed Steel<br>Stainless steel
Hole type Blind hole ≤ 2.5xD
Suitable for machine type Milling/drill center<br>Pedestal drilling machine
Quality ZEBRA-Premium
Thread type x nominal diameter M8
Pitch 1.25 mm
Length 90 mm
Shaft diameter 8 mm
Size of square 6.2 mm
DIN 371
Cutting material HSCo
Surface Bare
Form C
Core hole diameter 6.8 mm
Twist angle 40° (right)
Shank style Cylindrical with square drive
Tolerance of screw taps ISO 2 (6H)
Suitable for tensile strength up to 1000 N/mm²
Service life (points system) 2 of 4 points
Trueness to gauge (points system) 4 of 4 points
Versatility (points system) 2 of 4 points
Cutting behaviour (points system) 3 of 4 points
Chip formation (points system) 2 of 4 points
Material sub-group Stainless steels, sulphurated<br>Stainless steels, austenitic<br>Stainless steels, martensitic
