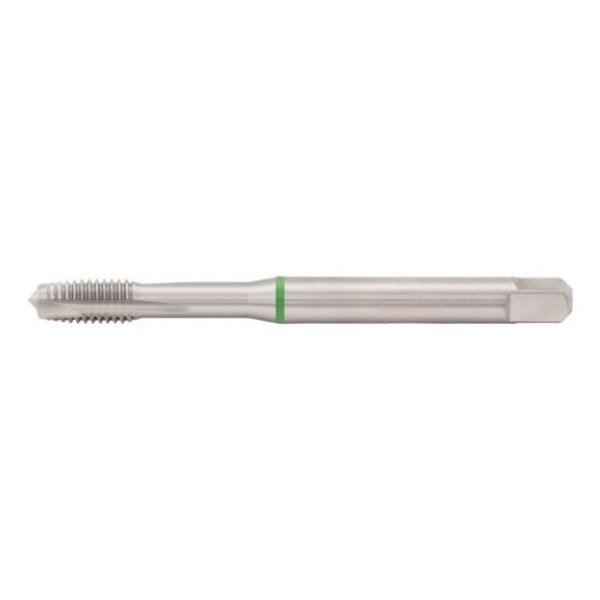

Machine screw tap HSCo green ring through hole DIN 371/376

Article No. 065510
Machine screw tap HSCo green form B MATAP-THRGHO-HSCO-DIN371-GREEN-M10 ZEBRA
€25.39 inc. VAT price per 1 PCS
Available on Order
Price may vary
*
+ -
The low-priced machine tap for processing alloyed and high-alloyed steels (stainless steels), as well as rust-resistant and acid-resistant steels. Also suitable for processing conventional steel materials up to a strength of 850 N/mm².
  • Tool geometry precisely tailored to stainless steel with increased clearance angle
Notice
  • Sufficient coolant and lubricant must be added when cutting threads.
  • For the machine tap/material assignments, see the overview tables
The low-priced machine tap for processing alloyed and high-alloyed steels (stainless steels), as well as rust-resistant and acid-resistant steels. Also suitable for processing conventional steel materials up to a strength of 850 N/mm².
  • Tool geometry precisely tailored to stainless steel with increased clearance angle
Notice
  • Sufficient coolant and lubricant must be added when cutting threads.
  • For the machine tap/material assignments, see the overview tables
Instructions

Before reversing the screw tap, the entire spiral point of the tool must be removed from the drill hole. Failure to do so may cause cutting edges to chip or the tool to break.

Products specifications
Thread type Metric thread
Material to be processed Steel<br>Stainless steel
Hole type Clearance hole ≤ 3xD
Suitable for machine type Milling/drill center<br>Pedestal drilling machine
Quality ZEBRA-Premium
Thread type x nominal diameter M10
Pitch 1.5 mm
Thread length (metric thread) 20 mm
Length 100 mm
Shaft diameter 10 mm
Size of square 8 mm
DIN 371
Cutting material HSCo
Surface Bare
Form B
Core hole diameter 8.5 mm
Twist angle
Shank style Cylindrical with square drive
Tolerance of screw taps ISO 2 (6H)
Suitable for tensile strength up to 1000 N/mm²
Service life (points system) 2 of 4 points
Trueness to gauge (points system) 4 of 4 points
Versatility (points system) 2 of 4 points
Cutting behaviour (points system) 3 of 4 points
Chip formation (points system) 2 of 4 points
Material sub-group Stainless steels, sulphurated<br>Stainless steels, austenitic<br>Stainless steels, martensitic
Products specifications
Thread type Metric thread
Material to be processed Steel<br>Stainless steel
Hole type Clearance hole ≤ 3xD
Suitable for machine type Milling/drill center<br>Pedestal drilling machine
Quality ZEBRA-Premium
Thread type x nominal diameter M10
Pitch 1.5 mm
Thread length (metric thread) 20 mm
Length 100 mm
Shaft diameter 10 mm
Size of square 8 mm
DIN 371
Cutting material HSCo
Surface Bare
Form B
Core hole diameter 8.5 mm
Twist angle
Shank style Cylindrical with square drive
Tolerance of screw taps ISO 2 (6H)
Suitable for tensile strength up to 1000 N/mm²
Service life (points system) 2 of 4 points
Trueness to gauge (points system) 4 of 4 points
Versatility (points system) 2 of 4 points
Cutting behaviour (points system) 3 of 4 points
Chip formation (points system) 2 of 4 points
Material sub-group Stainless steels, sulphurated<br>Stainless steels, austenitic<br>Stainless steels, martensitic
