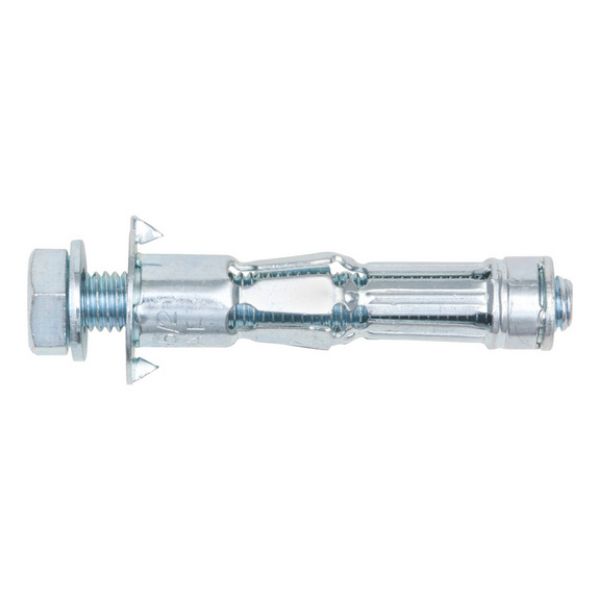

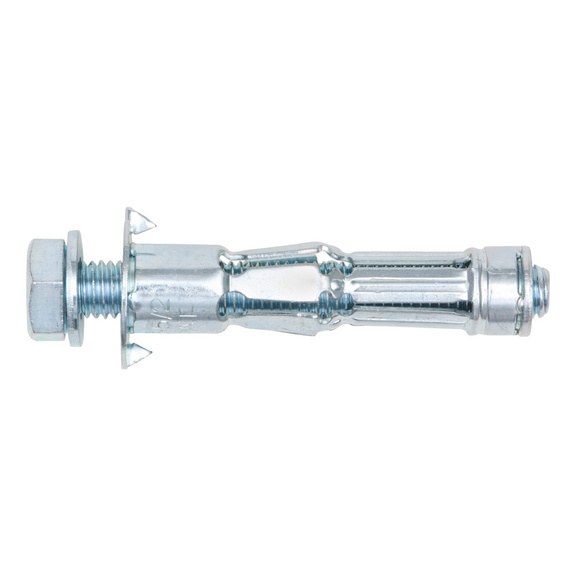

Metal cavity anchor W-MH

Article No. 090352856

Cavity anchor W-MH/S hexagon head DWL-(W-MH/S)-HEX-(5-16)-(A1K)-M8X65/55

€0.72 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

The proven solution for secure fixtures in cavity walls. With hexagon head bolt

Excellent holding power due to spreading supporting elements with large contact radius
Simple setting with associated mounting pliers
Pre-assembled with metric hexagon head screw
Anti-rotation lock on the collar prevents movement in the drill hole
Screw can be loosened without loss of holding power

Proof of Performance

Fire resistance tested in hollow pumice

Notice

The standard screw belonging to the anchor can be changed for another fastener with a metric thread of the same size after the anchor has been expanded, e.g. screw hook, eyelet, screw with special head, A2/A4 brass screw, threaded rod etc.

On hard substrates, such as tiles, the lugs on the collar (anti-rotation lock) must be bent straight.

Pushing the front lever on the ratchet pliers releases the ratchet pliers again.

Application area

Wall connection profiles, dry walling

Wall mirror

Wall units

Create the drill hole

Install anchor

Expand anchor fully with pliers

Secure component

Fire resistance tested in hollow pumice

Specification
Application
Technical Information
Documents

The proven solution for secure fixtures in cavity walls. With hexagon head bolt

Excellent holding power due to spreading supporting elements with large contact radius
Simple setting with associated mounting pliers
Pre-assembled with metric hexagon head screw
Anti-rotation lock on the collar prevents movement in the drill hole
Screw can be loosened without loss of holding power

Proof of Performance

Fire resistance tested in hollow pumice

Notice

On hard substrates, such as tiles, the lugs on the collar (anti-rotation lock) must be bent straight.

Pushing the front lever on the ratchet pliers releases the ratchet pliers again.

Application area

Wall connection profiles, dry walling

Wall mirror

Wall units

Create the drill hole

Install anchor

Expand anchor fully with pliers

Secure component

Fire resistance tested in hollow pumice

Application area

For secondary attachments in hollow and lightweight construction walls made of panel materials, and in hollow brick ceilings or hollow core ceilings up to a maximum thickness of 45 mm, behind which is a cavity

For attaching brackets, pipe clamps, wall ducts, small boilers, lamps, shelves, curtain rails, picture frames, slats and rails etc.

Products specifications

Type description	W-MH/S
Thread type x anchor diameter	M8
Design	With hexagon head bolt
Min./max. board thickness/mirror thickness (d a)	5-16 mm
Material	Steel
Nominal drill-bit diameter (d 0)	13 mm
Surface	Zinc plated
Sleeve length (l_Hü)	55 mm
Screw length	65 mm
Through-hole in the component to be connected (d f)	9 mm
