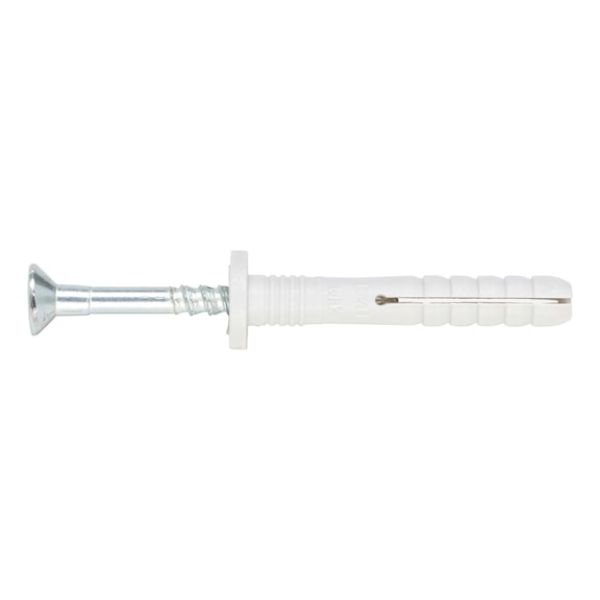

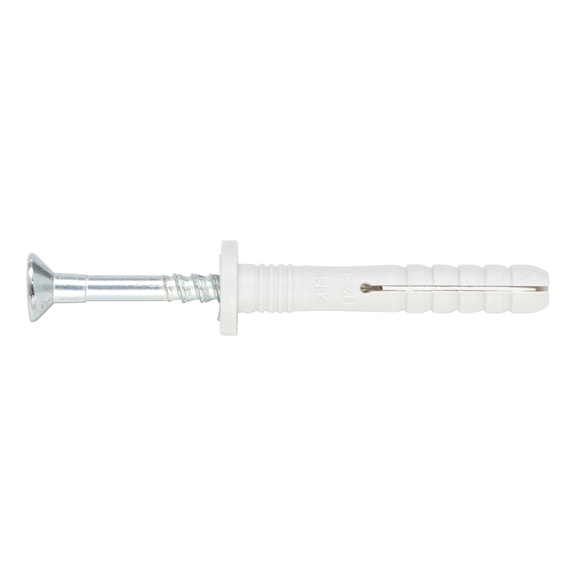

Nail anchor W-ND, flat head

Article No. 5907105035
Nail anchor W-ND flat head DWL-(W-ND)-FLHD-NL-Z2-(A1K)-5-5X35
€0.06 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
For securing angle brackets, panels, metal sheets, cable ducts and any components for non-recessed installation Wall plug body with flat head, nails zinc-plated steel
  • Quick, cost-effective installation
  • Pre-assembled: no need to search for the right screw
  • Also suitable for ducts
  • Can be removed via drive in screw head
  • Plastic anchors made of high-quality polyamide, resistant to mould
  • UV resistant
  • Heat resistant from -40 to +150°C
  • Halogen- and silicone-free
For securing angle brackets, panels, metal sheets, cable ducts and any components for non-recessed installation Wall plug body with flat head, nails zinc-plated steel
  • Quick, cost-effective installation
  • Pre-assembled: no need to search for the right screw
  • Also suitable for ducts
  • Can be removed via drive in screw head
  • Plastic anchors made of high-quality polyamide, resistant to mould
  • UV resistant
  • Heat resistant from -40 to +150°C
  • Halogen- and silicone-free
Products specifications
Anchor diameter 5 mm
Anchor length (l) 35 mm
Max. attachment height (t fix) 5 mm
Embedding depth (h nom) 30 mm
Nominal drill-bit diameter (d 0) 5 mm
Drill hole depth (h 1) 40 mm
Hole diameter in component (d f) 5.2 mm
Material of nail Steel
Internal drive Z2
Products specifications
Anchor diameter 5 mm
Anchor length (l) 35 mm
Max. attachment height (t fix) 5 mm
Embedding depth (h nom) 30 mm
Nominal drill-bit diameter (d 0) 5 mm
Drill hole depth (h 1) 40 mm
Hole diameter in component (d f) 5.2 mm
Material of nail Steel
Internal drive Z2
