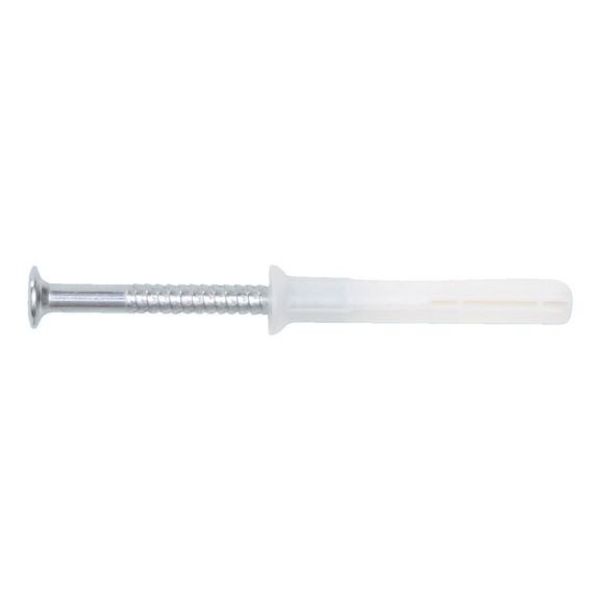

Nail anchor W-ZND Type SK

Article No. 090635680

Nail anchor, W-ZND A2 countersunk head, type SK DWL-SK-PLA-NL-A2-Z2-50-6X80 ZEBRA

€0.52 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

For fastening squared timbers, laths, thin sheets and all components for recessed mounting. Wall plug body with countersunk head, nail stainless steel A2

Resistant to UV rays
Plastic anchor made of high-quality polyamide — resistant to rotting
Temperature resistant from -40°C to +150°C
For recessed or protruding installation
Halogen free
Quick, cost-effective installation
Pre-assembled — no need to search for the right screw
Can be removed via drive in screw head
Clear integral hammer-in stop prevents premature expansion

Specification
Application
Technical Information
Documents

For fastening squared timbers, laths, thin sheets and all components for recessed mounting. Wall plug body with countersunk head, nail stainless steel A2

Resistant to UV rays
Plastic anchor made of high-quality polyamide — resistant to rotting
Temperature resistant from -40°C to +150°C
For recessed or protruding installation
Halogen free
Quick, cost-effective installation
Pre-assembled — no need to search for the right screw
Can be removed via drive in screw head
Clear integral hammer-in stop prevents premature expansion

Application area

Can be used in concrete, solid brick, solid sand-lime brick, aerated concrete, vertically perforated brick, lightweight concrete, hollow sand-lime brick, screed, gypsum panels

Any attachments for light and medium loads in woodworking, metalworking, plumbing and electrical applications

Securing angle brackets, panels, metal sheets, cable ducts and any components for non-recessed installation

For use in push-through installation

Products specifications

Anchor diameter	6 mm
Anchor length (l)	80 mm
Max. attachment height (t fix)	50 mm
Embedding depth (h nom)	30 mm
Nominal drill-bit diameter (d 0)	6 mm
Drill hole depth (h 1)	35 mm
Hole diameter in component (d f)	6 mm
Material of the nail	Stainless steel A2
Surface	Bare
Internal drive	Z2
