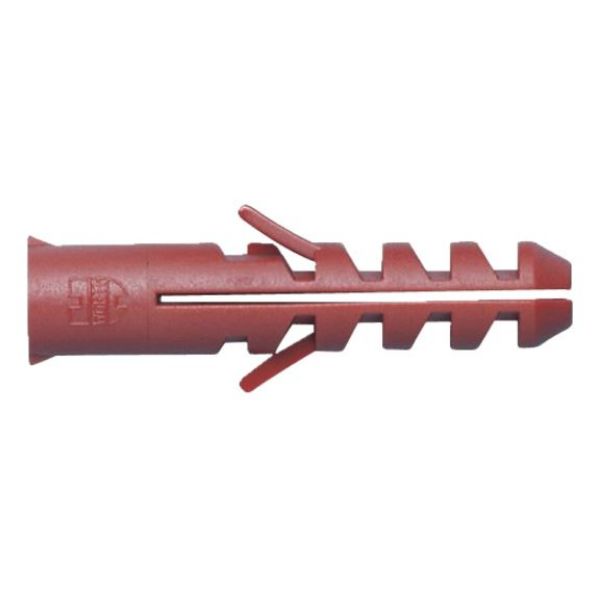

Nylon anchor

Article No. 09031050

Dowel nylon DWL-PLA-10X50

€17.29 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

Plastic anchors for light loads (secondary attachments)

High-quality polyamide (nylon)
Halogen and silicon free
Temperature resistant from -40°C to +80°C
The hammer-in stop prevents premature expansion during push-through installation
The twist lock prevents turning in the drill hole
Wall plug shaft with no expansion pressure prevents damage to plaster and tiles
Push-through and cotter-pin installation
For mounting, we recommend the ASSY-D plug screw

Notice

Drill perforated brick using the rotary drill (without striking tool)
The drill cuttings must be removed from the drill hole
Screw length = attachment thickness (+plaster/insulation thickness) + anchor length + screw diameter

Plastic anchors for light loads (secondary attachments)

High-quality polyamide (nylon)
Halogen and silicon free
Temperature resistant from -40°C to +80°C
The hammer-in stop prevents premature expansion during push-through installation
The twist lock prevents turning in the drill hole
Wall plug shaft with no expansion pressure prevents damage to plaster and tiles
Push-through and cotter-pin installation
For mounting, we recommend the ASSY-D plug screw

Notice

Drill perforated brick using the rotary drill (without striking tool)
The drill cuttings must be removed from the drill hole
Screw length = attachment thickness (+plaster/insulation thickness) + anchor length + screw diameter

Application area

Suitable for attaching curtain rails, wall shelves, light wall cupboards, picture frames, cable ducts, cable clamps, electrical switches, towel rails, signs, motion detectors, hanging baskets etc.

For attaching components in conjunction with a wood or particle board screw (without drill tip, counter thread, ring thread) (e.g. ASSY-D)

Can be used outdoors or in wet rooms in conjunction with a stainless steel screw

Products specifications

Anchor diameter	10 mm
Anchor length (l)	50 mm
Embedding depth (h nom)	50 mm
Nominal drill-bit diameter (d 0)	10 mm
Required wood screw diameter (d scr.wood)	6 - 8 mm
Required particle-board screw diameter (d scr.particle)	8 mm
Min. required screw diameter	6 mm
Max. required screw diameter	8 mm
Embedding depth (h s)	50 mm
Centre-to-centre distance (a)	100 mm
Edge clearance (a r)	50 mm
Drill hole depth (t)	65 mm
Max. attachment height (d a) - condition	Dependent on screw length
Required screw length (l s)	Thickness of the add-on part (+ plaster/insulation thickness) + anchor length + screw diameter

Würth Catalogue(2)

Catalogue page as PDF 1 | 2 | 3 | 4 | 5

Products specifications

Anchor diameter	10 mm
Anchor length (l)	50 mm
Embedding depth (h nom)	50 mm
Nominal drill-bit diameter (d 0)	10 mm
Required wood screw diameter (d scr.wood)	6 - 8 mm
Required particle-board screw diameter (d scr.particle)	8 mm
Min. required screw diameter	6 mm
Max. required screw diameter	8 mm
Embedding depth (h s)	50 mm
Centre-to-centre distance (a)	100 mm
Edge clearance (a r)	50 mm
Drill hole depth (t)	65 mm
Max. attachment height (d a) - condition	Dependent on screw length
Required screw length (l s)	Thickness of the add-on part (+ plaster/insulation thickness) + anchor length + screw diameter
