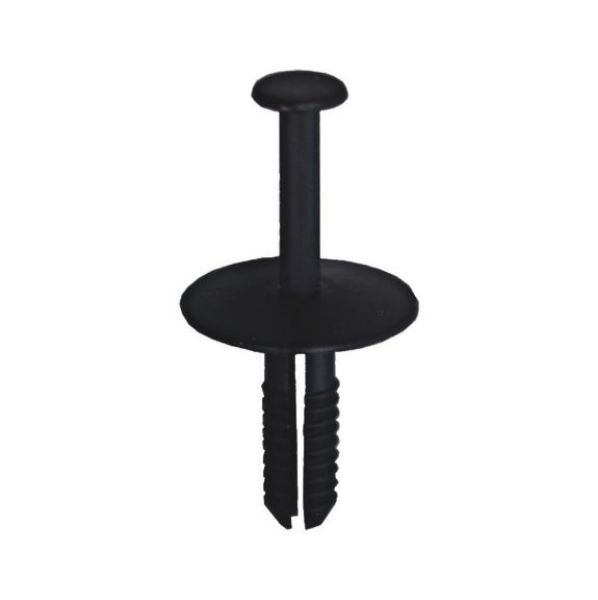

Plastic expanding rivet Type 3

Article No. 0501103017

Plastic expanding rivet, type 3 MP-OPEL-SPREADINGRIVET-PLA-FRONTCOVERING

€0.38 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

Base similar to a pine tree clip

Straightforward fitting and removal

Manual fitting also possible

High retention force and a secure fit in the component

Base similar to a pine tree clip

Straightforward fitting and removal

Manual fitting also possible

High retention force and a secure fit in the component

Application area

Sheet metal attachments

Products specifications

Min./max. drill hole diameter	6-6.2 mm
Min./max. attachment thickness	7-15 mm
Head diameter (B)	20 mm
Head height (C)	3.5 mm
Length of expanding mandrel (D)	15 mm
Diameter of expanding mandrel (A)	6.5 mm
Material	PA 66 - Polyamide
Colour	Black
Corresponds to original spare part number	1400806
Corresponds to original spare part number 2	90508809
