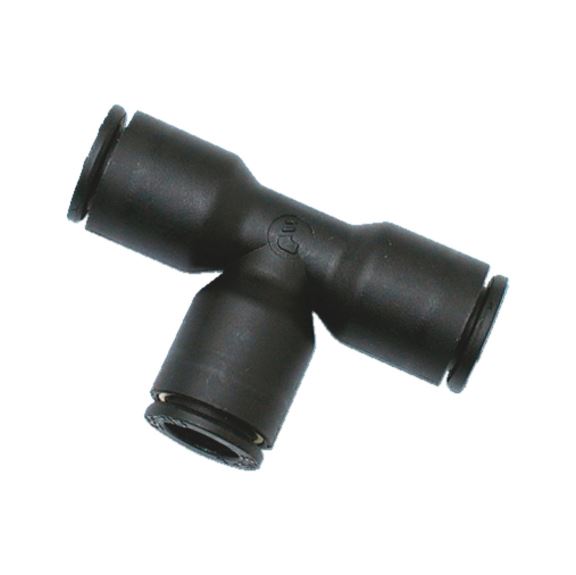

Plastic T-connector

Article No. 08850204
Plastic T-plug-in connectors QCKPLGCON-(T-CON)-PLA-D4MM
€6.90 inc. VAT price per 1 PCS
Available on Order
Price may vary
+ -
*
Plug connector for pneumatic control lines
  • Operating temperature: -20°C to +80°C
  • Permissible operating pressure max. 20 bar
Notice

Above a certain length, pipes "vibrate", irrespective of whether they are made of steel, copper or plastic. Therefore, all pipes should be secured on the body or on the frame using pipe clamps, rubberised if possible, wherein the distance should be 1 m and must not exceed 1.20 m.

Plug connector for pneumatic control lines
  • Operating temperature: -20°C to +80°C
  • Permissible operating pressure max. 20 bar
Notice

Above a certain length, pipes "vibrate", irrespective of whether they are made of steel, copper or plastic. Therefore, all pipes should be secured on the body or on the frame using pipe clamps, rubberised if possible, wherein the distance should be 1 m and must not exceed 1.20 m.

Products specifications
Outer diameter of pipe (D1) 4 mm
Outer diameter (G) 8.5 mm
Distance from centre of pipe to end of T-piece (L/2) 14.5 mm
Length (l) 329 mm
Height (H) 19 mm
Max. working pressure 20 bar
Gasket material Nitrile
Material Plastic
Serrated washer material Stainless steel
Min./max. temperature conditions -20 to 80 °C
