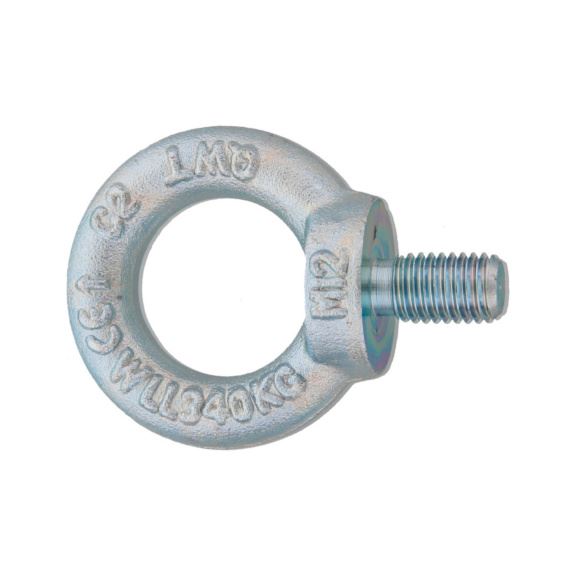

Ring bolt

Article No. 0295912

DIN 580 steel, C15E, galvanised BLT-RG-DIN580-C15E-(A2K)-FORGED-M12

€3.89 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

DIN 580, material: C15 E, steel, galvanised, blue passivated (A2K)

Notice

Please take note of the information in the installation instructions prior to use!

M6 ring bolts are not part of DIN 580!

DIN 580, material: C15 E, steel, galvanised, blue passivated (A2K)

Notice

Please take note of the information in the installation instructions prior to use!

M6 ring bolts are not part of DIN 580!

Products specifications

Thread type x nominal diameter (d₁)	M12
Diameter of contact surface (d₂)	30 mm
Outer diameter (d₃)	54 mm
Internal diameter (d₄)	30 mm
Height (h₁)	53 mm
Length (l₁)	20.5 mm
Standards	DIN 580
Material	Case hardening steel, 1.1141, C15E
Surface	Galvanised
RoHS-compliant	Yes
Max. load capacity	340 kg
Head type	With lifting eye
Thread type	Metric thread
Pitch	1.75 mm
Thread format	Standard metric thread
Thread length (metric thread)	17 mm
EC declaration of conformity (CE)	Yes
