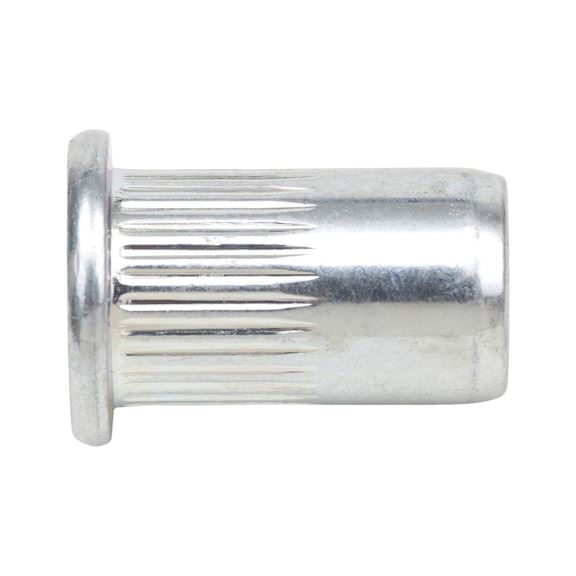

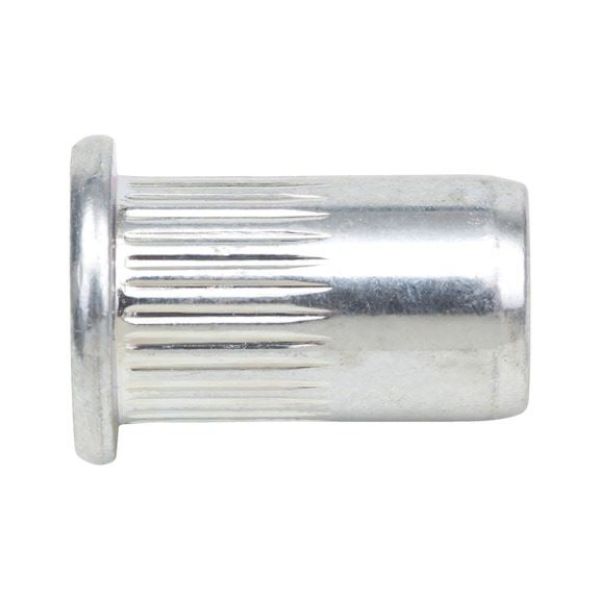

Rivet nut with flat head and knurled shank

Article No. 09422004

Flat head A2 stainless steel knurled shank NUT-RIV-MHD-(3,0-4,5)-A2-14,0-M4

€38.18 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

A2 stainless steel

A2 stainless steel

Products specifications

Thread type x nominal diameter (D)	M4
Head diameter (d₁)	9 mm
Outer diameter (d₂)	5.9 mm
Length (l₁)	14 mm
Head height (k₁)	1.1 mm
Min./max. grip range (s₁)	3.0-4.5 mm
Material	Stainless steel A2
Head type	Dome head
Drill hole diameter	6 mm
Tensile fracture load	7800 N
Shear-fracture load	2600 N
Max. tightening torque	7 Nm
