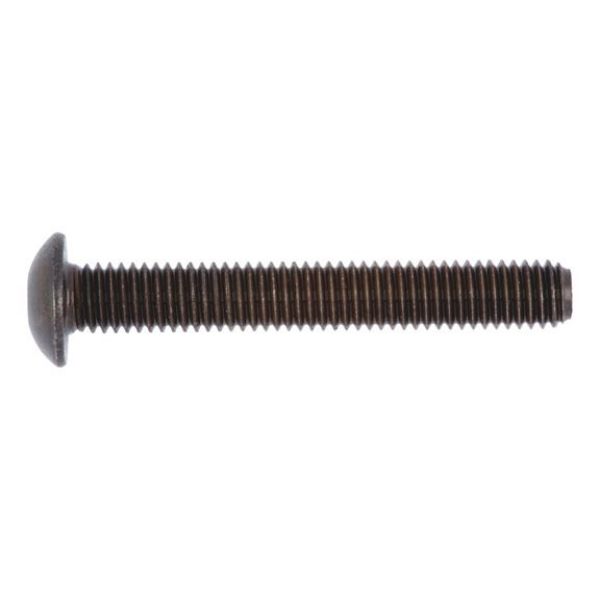

Screw with flattened half round head and hexagon socket

Article No. 006002310

ISO 7380-1 steel 010.9, plain SCR-RSD-ISO7380/1-010.9-IH2-M3X10

€3.72 inc. VAT price per 100 PCS

Available on Order
Price may vary

Qty:

+ -

ISO 7380-1, steel 010.9, plain

Notice

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 898-1

ISO 7380-1, steel 010.9, plain

Notice

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 898-1

Products specifications

Thread type x nominal diameter (d₁)	M3
Length (l₁)	10 mm
Head diameter (d_k)	5.7 mm
Head height (k₁)	1.65 mm
Standards	ISO 7380-1
Material	Steel
Property class	010.9
Surface	Bare
RoHS-compliant	Yes
Head type	Button head
Drive type	Hexagon socket
Internal drive	IH2
Thread type	Metric thread
Pitch	0.5 mm
Thread format	Standard metric thread
Product class	A

Products specifications

Thread type x nominal diameter (d₁)	M3
Length (l₁)	10 mm
Head diameter (d_k)	5.7 mm
Head height (k₁)	1.65 mm
Standards	ISO 7380-1
Material	Steel
Property class	010.9
Surface	Bare
RoHS-compliant	Yes
Head type	Button head
Drive type	Hexagon socket
Internal drive	IH2
Thread type	Metric thread
Pitch	0.5 mm
Thread format	Standard metric thread
Product class	A
