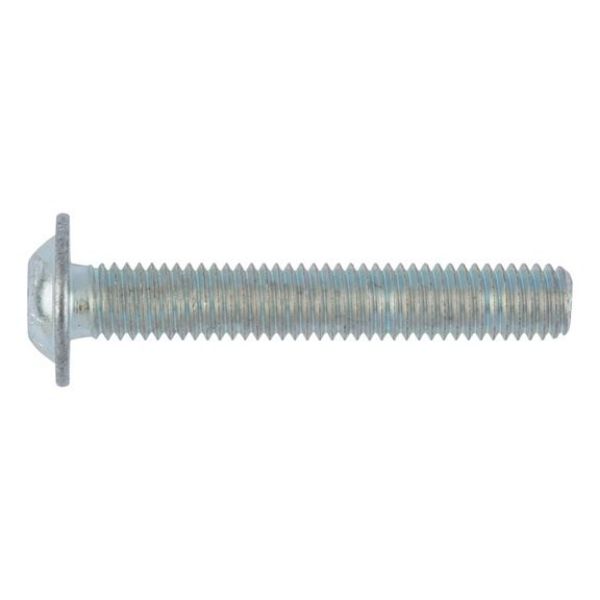

Screw with flattened half round head with collar and hexagon socket

Article No. 006000510

ISO 7380-2 steel 010.9 galvanised SCR-ISO7380/2-010.9-IH3-(A2K)-M5X10

€8.31 inc. VAT price per 100 PCS

Available on Order
Price may vary

Qty:

+ -

ISO 7380-2, steel 010.9, galvanised blue passivated (A2K)

Notice

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 898-1

Specified dimensions not binding. Subject to technical changes!

ISO 7380-2, steel 010.9, galvanised blue passivated (A2K)

Notice

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 898-1

Specified dimensions not binding. Subject to technical changes!

Products specifications

Thread type x nominal diameter (d₁)	M5
Length (l₁)	10 mm
Head diameter (d_c)	11.8 mm
Head height (k₁)	2.75 mm
Standards	ISO 7380-2
Material	Steel
Property class	010.9
Surface	Galvanised
RoHS-compliant	Yes
Head type	Button head with collar
Head details	With collar
Drive type	Hexagon socket
Internal drive	IH3
Thread type	Metric thread
Pitch	0.8 mm
Thread format	Standard metric thread
Product class	A

Würth Catalogue(2)

Catalogue page as PDF 1 | 2 | 3
