Sealing washer with metal back - WSH-EPDM3-(A2K)-D19MM-(F.SCR6,3-6,5)

Sealing washer with metal back - WSH-EPDM3-(A2K)-D19MM-(F.SCR6,3-6,5)

Sealing washer with metal back - WSH-EPDM3-(A2K)-D19MM-(F.SCR6,3-6,5)

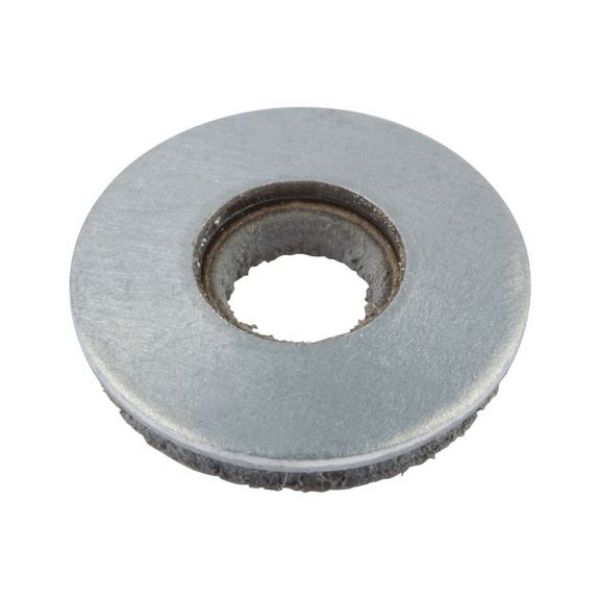

Sealing washer with metal back

Article No. 020019

Galvanised steel sealing washer WSH-EPDM3-(A2K)-D19MM-(F.SCR6,3-6,5)

€20.06 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Galvanised steel with 1-mm metal back

Vulcanised-on elastomer seal
Würth sealing washers improve the dynamic strength of a connection

Specification
Technical Information
Documents

Galvanised steel with 1-mm metal back

Vulcanised-on elastomer seal
Würth sealing washers improve the dynamic strength of a connection

Products specifications

Outer diameter (d₂)	19 mm
Suitable for	Screw diameters 6.3 and 6.5 mm
Gasket thickness (h₁)	3 mm
Internal diameter of the seal (d₁)	5.1 mm
Internal diameter (d₃)	7 mm
Material	Steel
Surface	Galvanised
RoHS-compliant	Yes
Material of the sealing ring	Ethylene propylene diene terpolymer rubber EPDM
Product weight (per item)	2.827 g

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Products specifications

Outer diameter (d₂)	19 mm
Suitable for	Screw diameters 6.3 and 6.5 mm
Gasket thickness (h₁)	3 mm
Internal diameter of the seal (d₁)	5.1 mm
Internal diameter (d₃)	7 mm
Material	Steel
Surface	Galvanised
RoHS-compliant	Yes
Material of the sealing ring	Ethylene propylene diene terpolymer rubber EPDM
Product weight (per item)	2.827 g
